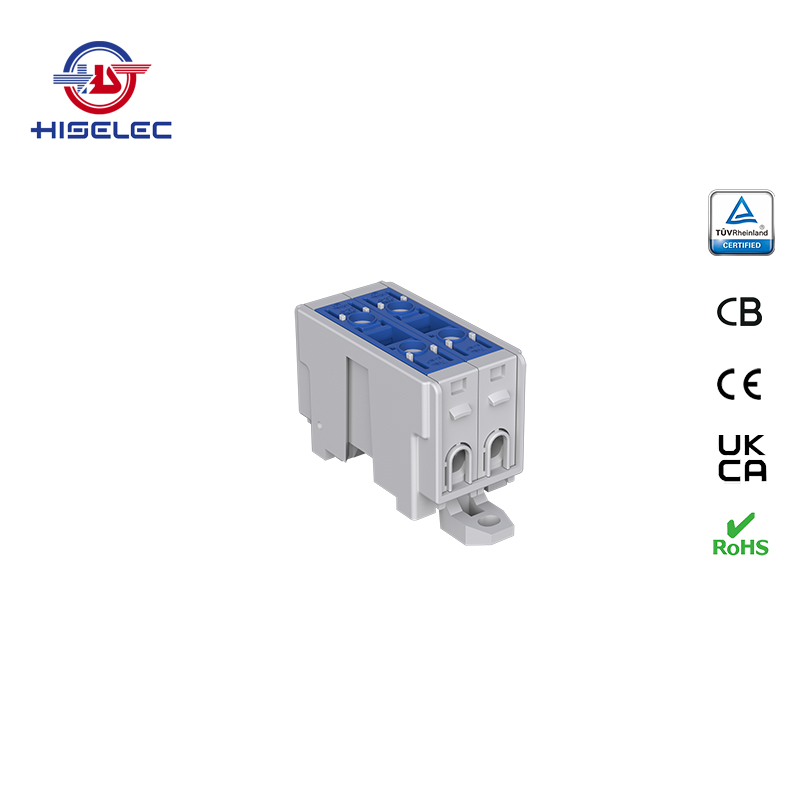

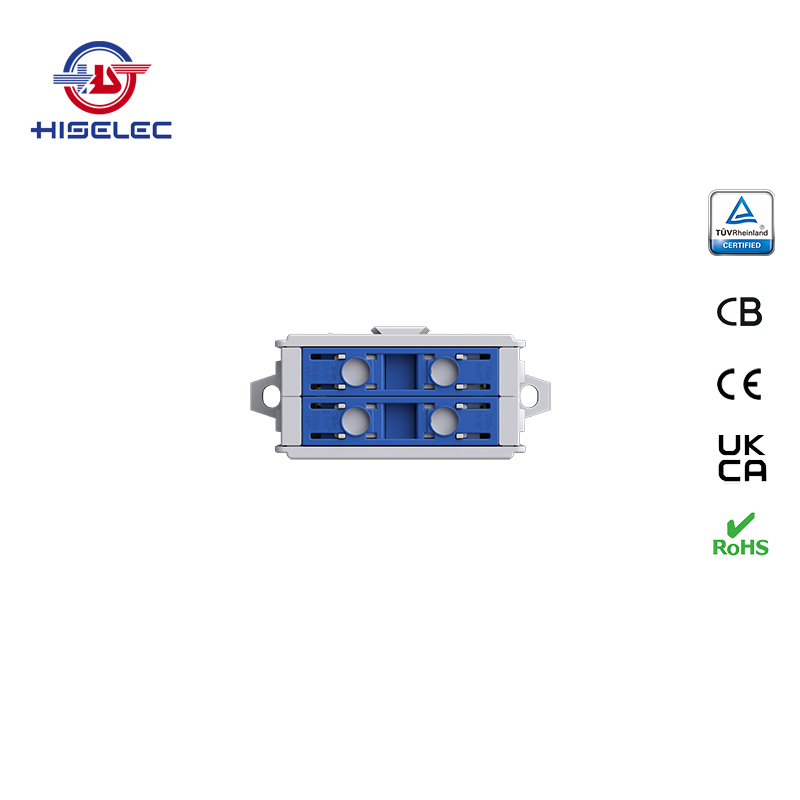

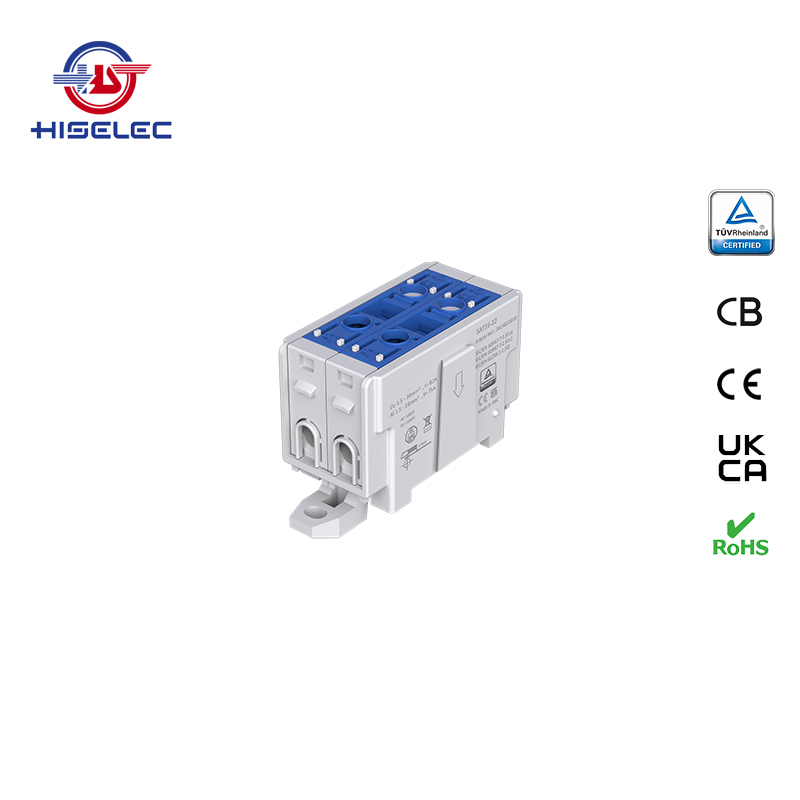

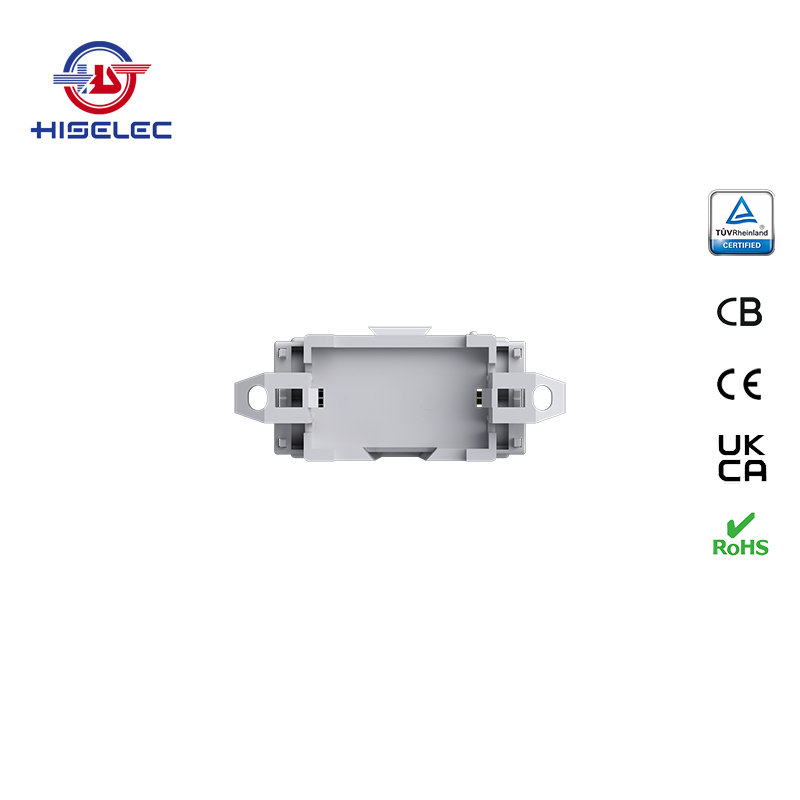

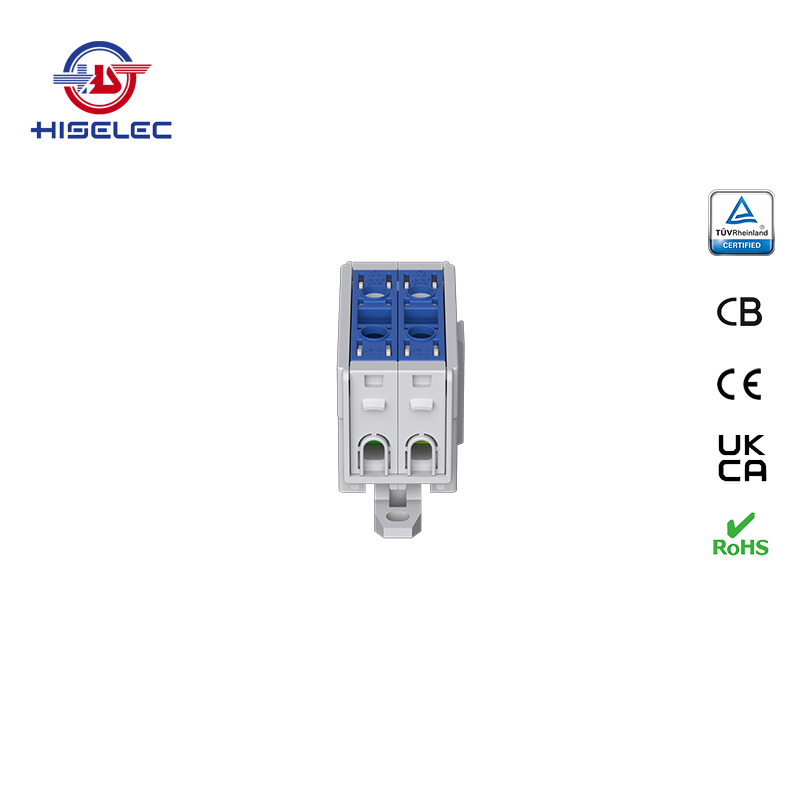

SAT16-22 series blue 2 ways Al/Cu universal terminal block

General Use

SAT series Al/Cu universal terminal block is totally patent design product by HISELEC, which offers the best quality, safety installation features in the market. All the product already got TUV, CB, CE, UKCA, RoHS certificate. It was designed for both copper conductor and Aluminum conductor. The most important is this terminal block are allowed each pieces of product can connect each other easily.

Technical features

1. Add on design which is allowing any pieces of product can connect each other easily;

2. Good design on side cover and top barrier to reach IP20 protection to avoid finger touch the metal part or any insect go inside the terminal block to cause electric shock risk;

3. Compact design to save tbe space;

4. Quickly and easily din-rail mounting or screw mounting;

5. Reliable housing material polyamide UL94 V0(PA Halogen free)

Material

Terminal body:	Tinned plating Aluminum
Housing:	Flame Retardant Polyamide UL94 V0 (PA halogen-free)
Screws:	Nickel plating steel hexagonal screw
Flame resistance:	Self-extinguishing

Certificate

TUV mark, CB, CE, UKCA, RoHS

Standard

IEC/EN60947-7-1 for general copper wire/cable;

IEC/EN60947-7-2 for general copper wire/cable (PE/earth connection);

IEC/EN61238-1-1 for general aluminum wire/cable (Class A terminal block);

Allows both Al conductor and Cu Conductor

The terminal block allowed connection between

Al conductor connect with Al conductor;

Al conductor connect with Cu conductor;

Cu conductor connect with Al conductor;

Cu conductor connect with Cu conductor;

SAT series Al/Cu universal terminal block are shorted circuit tested and certified which is class A terminal.
Terminals that have been tested and certified according to IEC/EN61238-1-1 are divided into class A and class B:
Class A terminals are short circuit tested and suitable for both equipment and general use also as feed-in terminals.
Class B terminals are not short circuit tested and can only be used in circuits which are protected with fast acting fuses, not with general use fuse or motor circuit fuses, which are typically use in industrial applications.

Add on design

Add-on design which is much convenient. Each pieces of product can connect together:
-1 way + 1 way
-1 way + 2 ways
-1 way + 3 ways
-2 way + 3 ways

Model Specification

SAT	16	-	1	1
Product series	Conductor cross section area		Poles	Cover's Color
	16 mm²		1 One pole one way	1 Grey
	35 mm²		2 One pole two ways	2 Blue
	50 mm²		3 One pole three ways	3 Yellow/Green
	95 mm²			4 Brown
	150 mm²			5 Black
	240 mm²			6 Red

Technical Data

Product code	Color		Conductor (mm²)	Nominal current In (A)	Nominal insulation voltage Ui (V)	Screw head hexagon diameter (mm)	Tightenin torque (Nm)	Mounting	Weight (g)	Pcs/Inner box (pcs)	Pcs/Master carton (pcs)
SAT16-21	Grey		2 x Cu 1.5-16 mm² 2 x Al 1.5-16 mm²	Cu 82A Al 75A	AC 1000V DC 1500V	M8	1.5Nm (1.5m㎡) 3.5Nm (2.5-6m㎡) 7Nm (10-16m㎡)	DIN-rail	47.55	11	253
SAT16-22	Blue
SAT16-23	Yellow/Green
SAT16-24	Brown
SAT16-25	Black
SAT16-26	Red

Color Indication

Application	Color				Mark	Indication
	New regulation		Old regulation
AC-Single Phase		Brown		Grey	L	Single Phase Line
		Blue		Blue	N	Netural

Application	Color				Mark	Indication
	New regulation		Old regulation
AC-Three Phase		Brown		Grey	L1	Three Phase Line 1
		Black		Grey	L2	Three Phase Line 2
		Grey		Grey	L3	Three Phase Line 3
		Blue		Blue	N	Netural
		Yellow/Green		Yellow/Green	PE	Protective Eath or Ground

Application	Color		Mark	Indication
DC		Black	-	Negative pole
		Red	+	Positive pole

Product application

1. Switchgear and Controlgear
2. Industrial Automation
3. Solar System
4. Wind Power
5. Mechanical Manufacture
6. Construction
