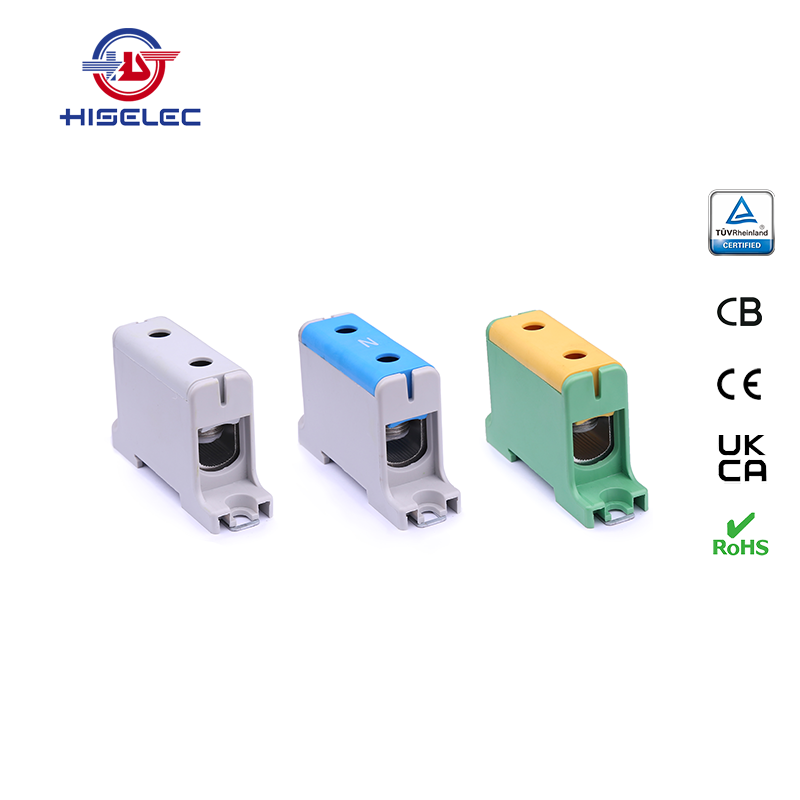

TR 95 series 1 way Al/Cu universal terminal block

TR 95 series 1 way Al/Cu universal terminal block

TR 95 series 1 way Al/Cu universal terminal block

    Share:

Conformity: CE, ROHS
Standards: EN 60947-7-1 / EN 61238-1
Cross-section range: Al 6-240mm2 / Cu 2.5-240mm2
Nominal current range: 145A-425A

Description

Technical

Product code Color Conductor
(mm2)
Nominal current In
(A)
Nominal insulation voltage Ui
(V)
Screw head hexagon diameter
(mm)
Tightening torque
(Nm)
Mounting Weight
(g)
Inner box package
(pcs)
Master carton package
(pcs)

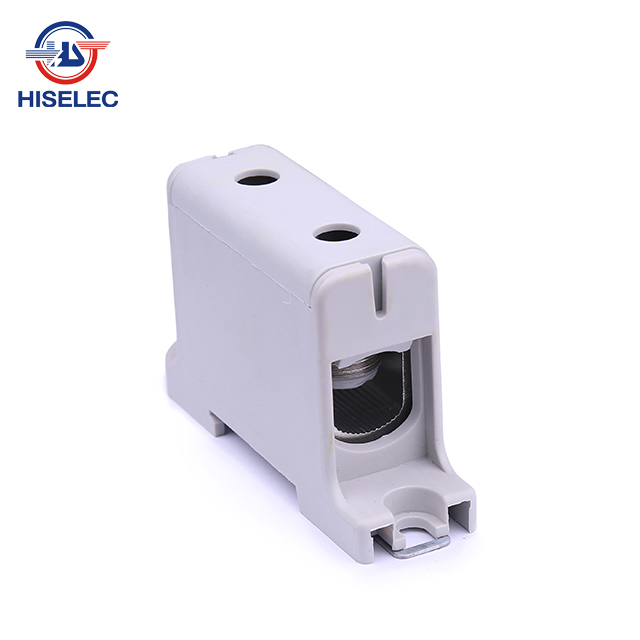

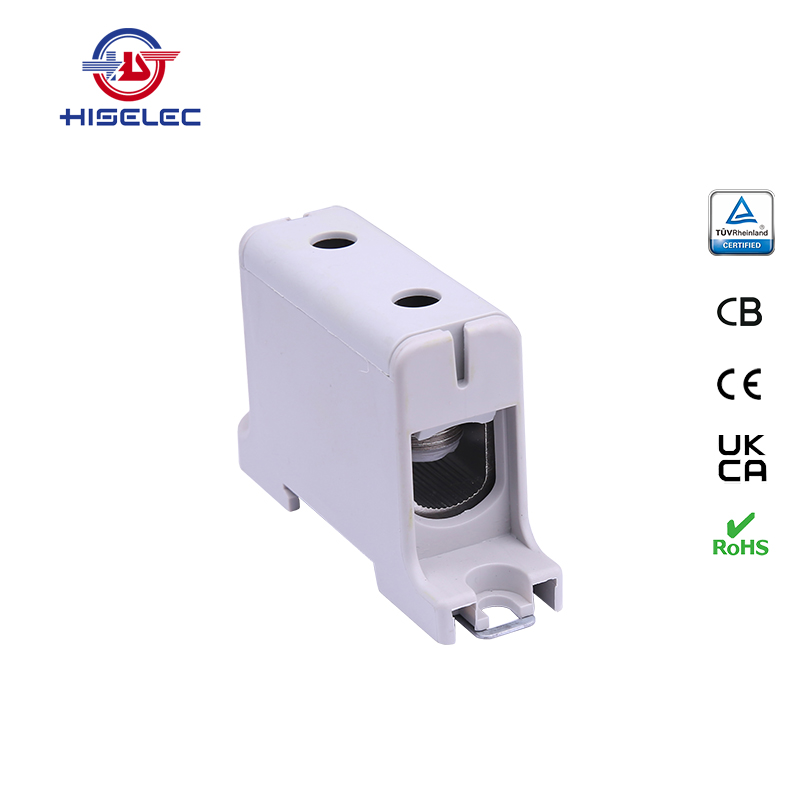

TR 95.1-1 Grey 1xAl/Cu 16-95 mm2
Cu 245A
Al 200A
800V 5mm 20 Nm (16-95 mm2)
DIN-rail / Screw 92g 8 192

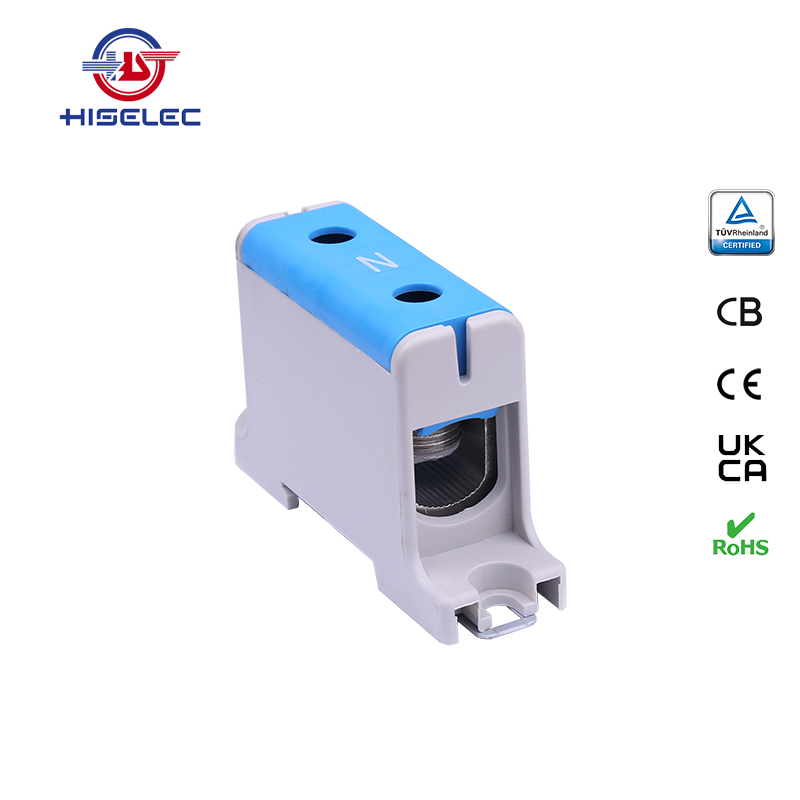

TR 95.2-1 Blue

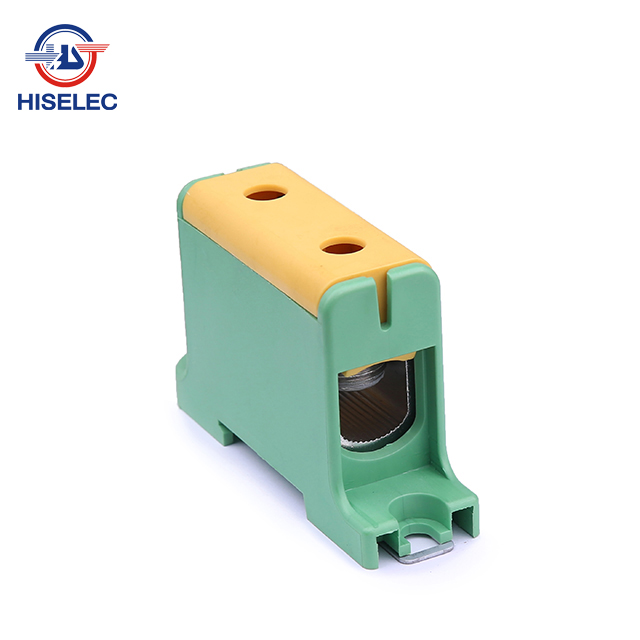

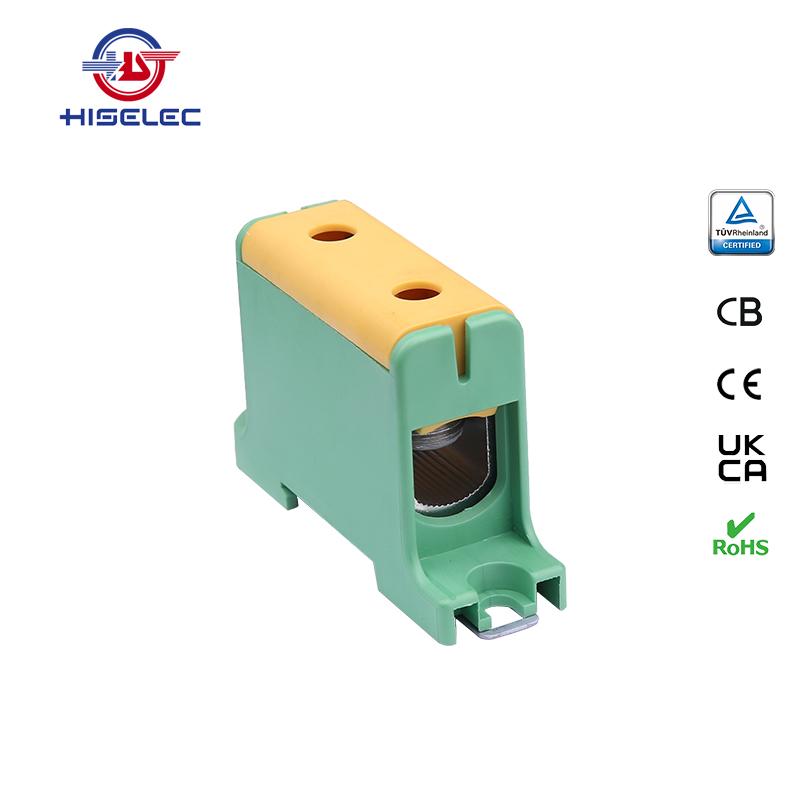

TR 95.3-1 Yellow/Green
