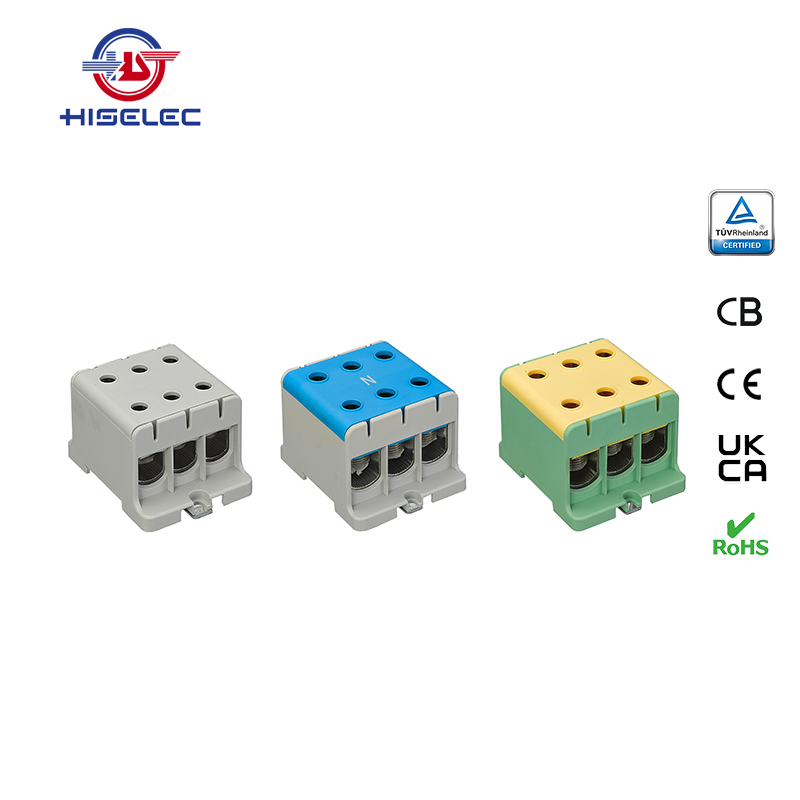

TR 150 series 3 ways Al/Cu universal terminal block

TR 150 series 3 ways Al/Cu universal terminal block

TR 150 series 3 ways Al/Cu universal terminal block

    Share:

Conformity: CE, ROHS
Standards: EN 60947-7-1 / EN 61238-1
Cross-section range: Al 6-240mm2 / Cu 2.5-240mm2
Nominal current range: 145A-425A

Description

Technical

Product code Color Conductor
(mm2)
Nominal current In
(A)
Nominal insulation voltage Ui
(V)
Screw head hexagon diameter
(mm)
Tightening torque
(Nm)
Mounting Weight
(g)
Inner box package
(pcs)
Master carton package
(pcs)

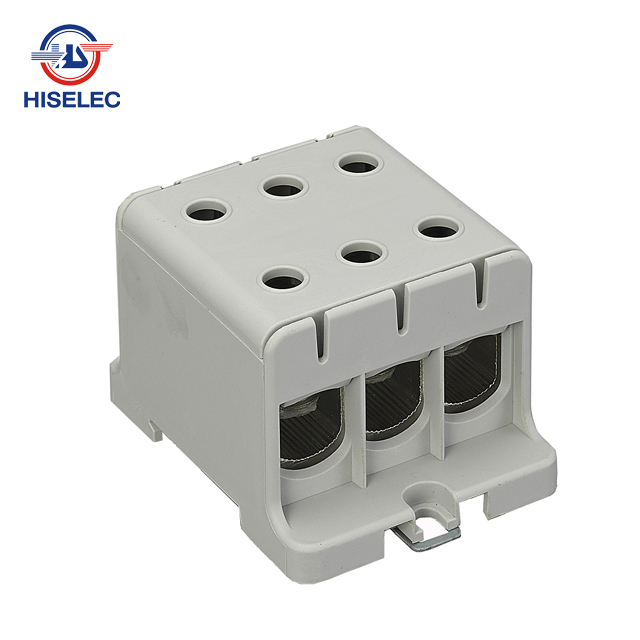

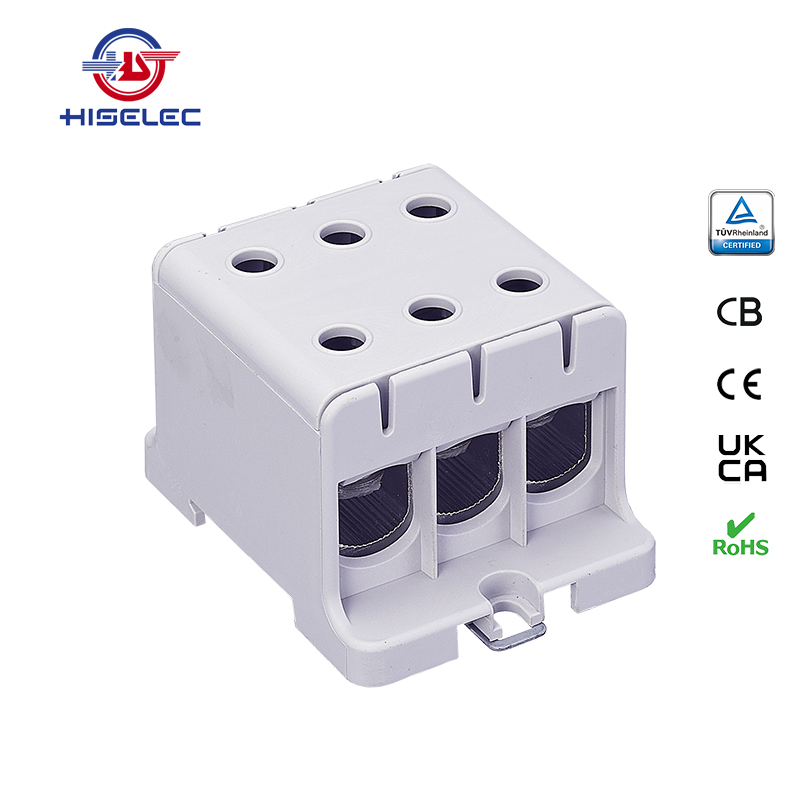

TR 150.1-3 Grey 3xAl/Cu 35-150 mm2
Cu 320A
Al 290A
800V 5mm

20 Nm (35-95 mm2)

30Nm (120-150 mm2)

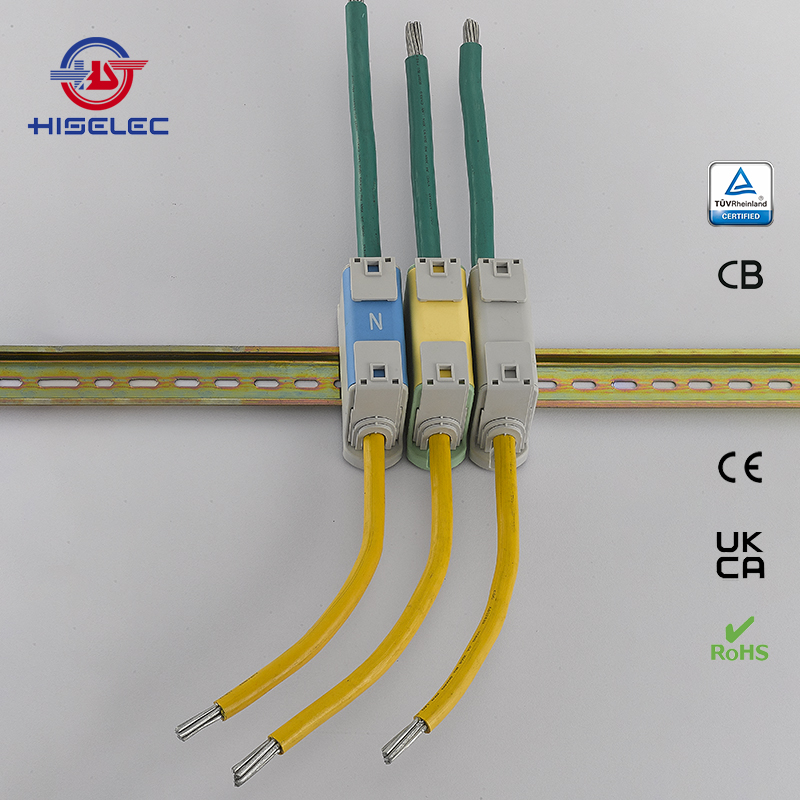

DIN-rail / Screw 418g 2 44

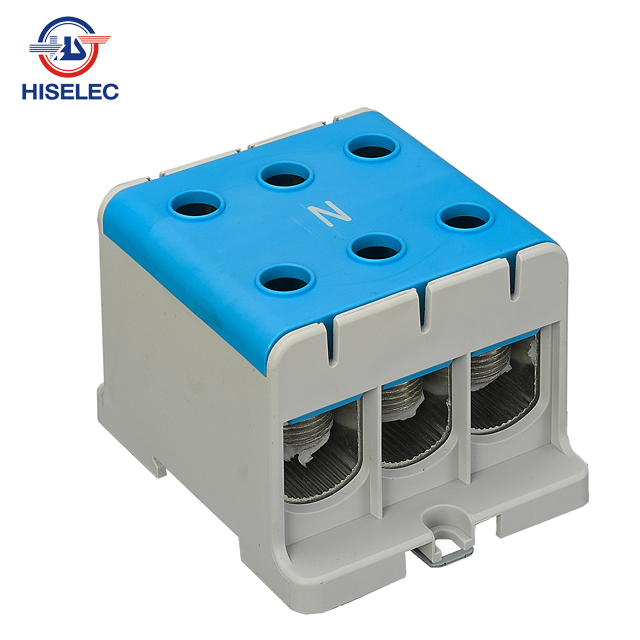

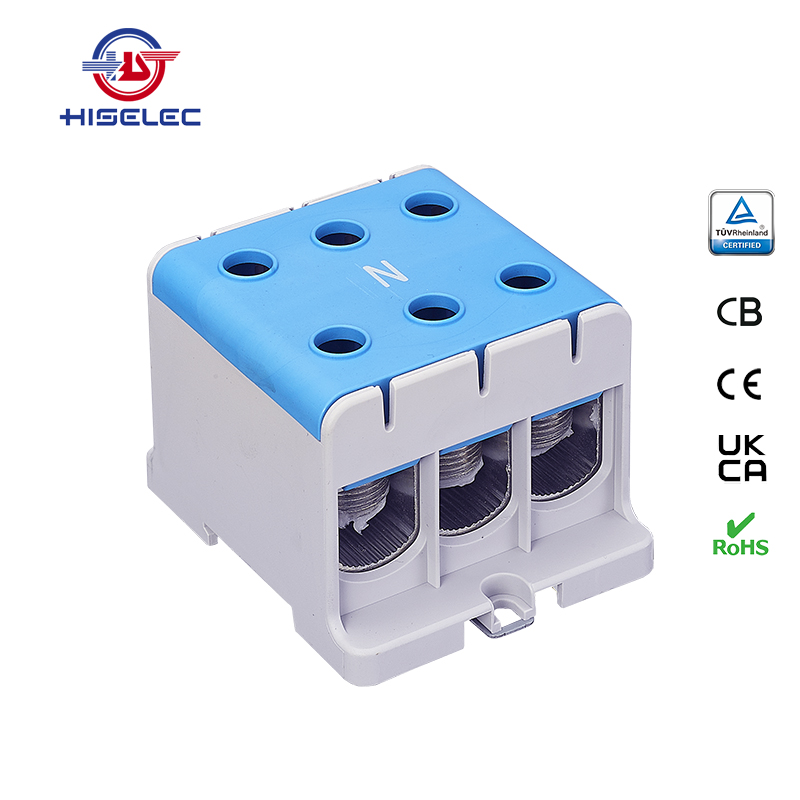

TR 150.2-3 Blue

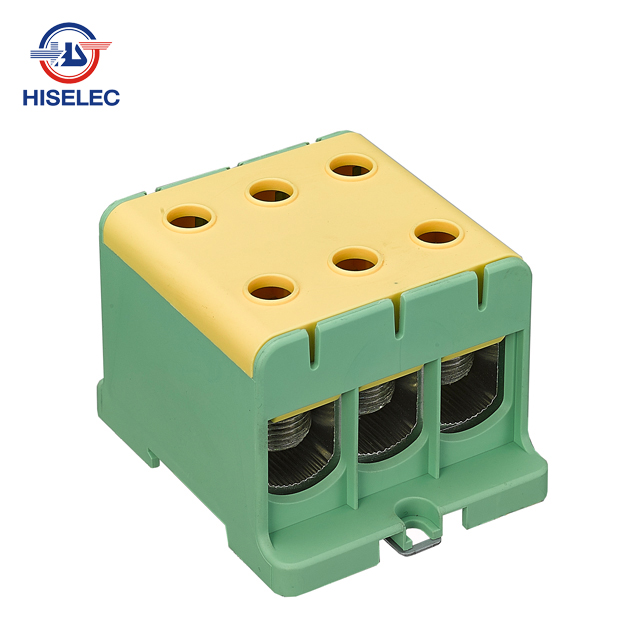

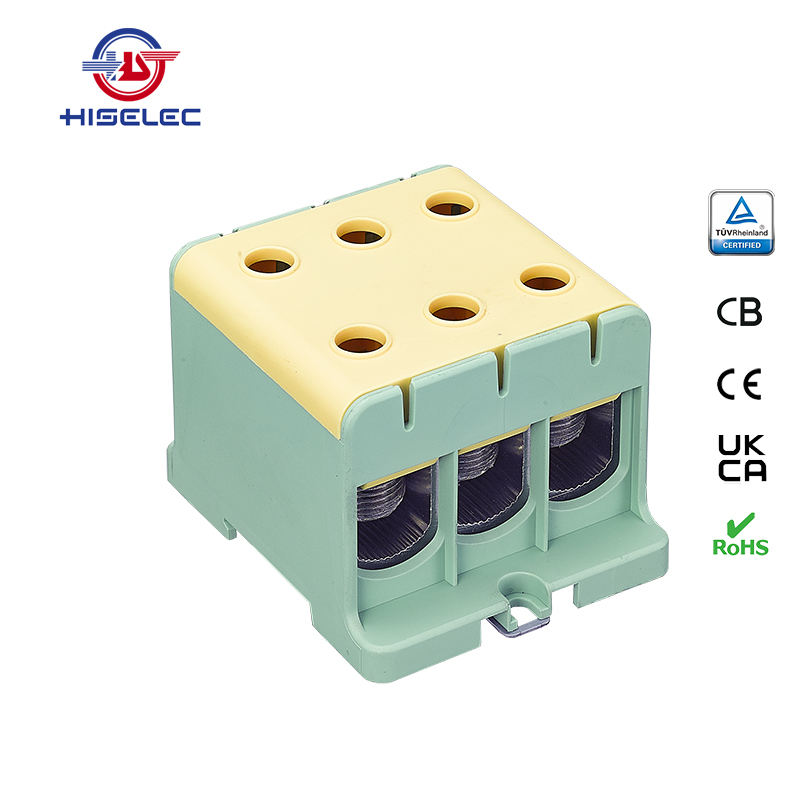

TR 150.3-3 Yellow/Green
