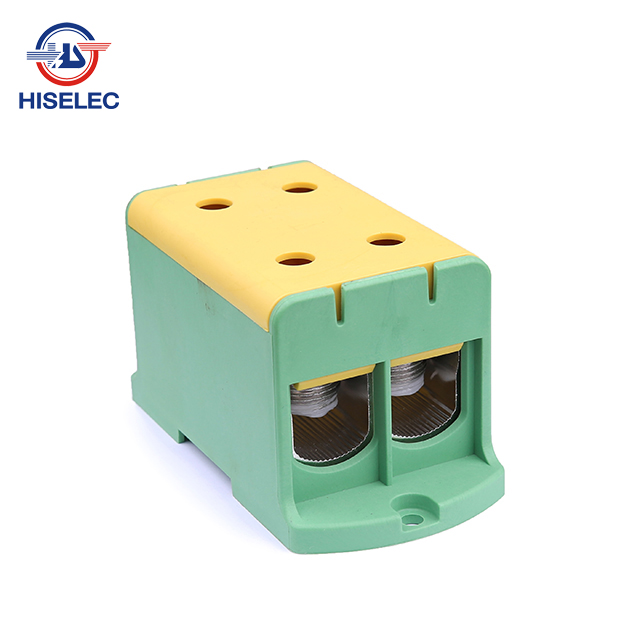

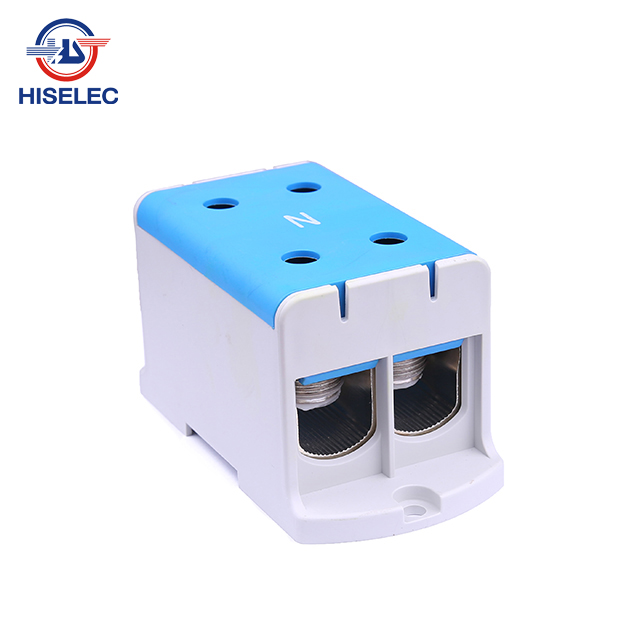

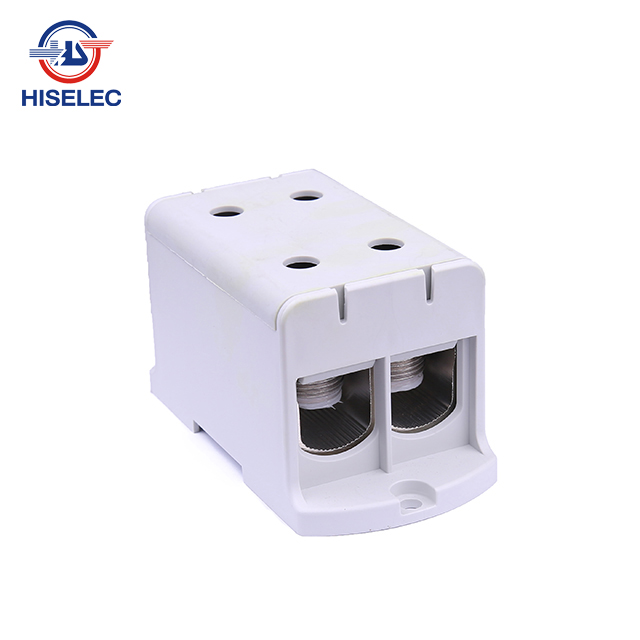

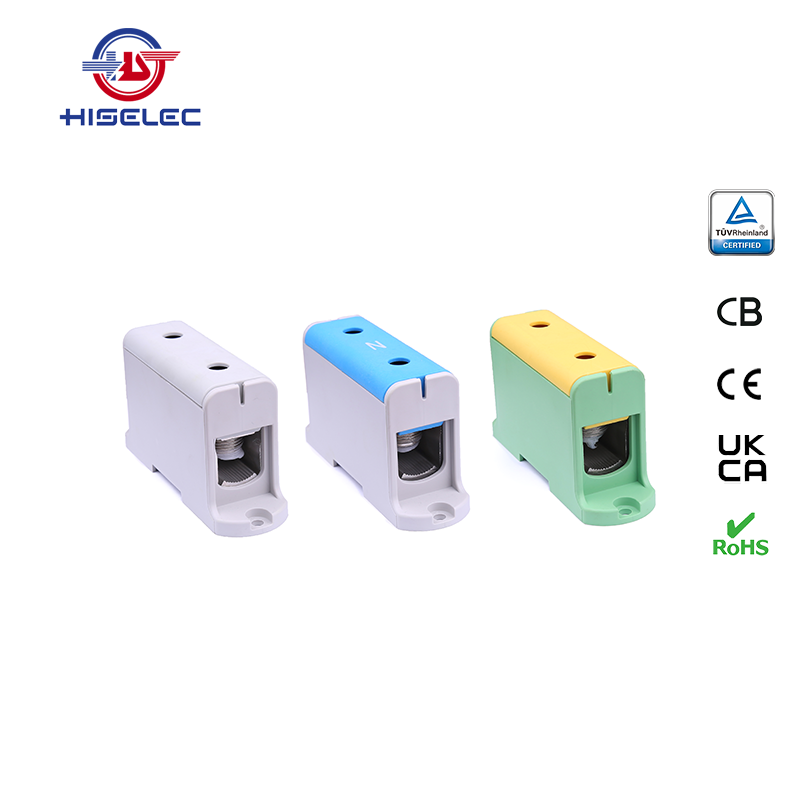

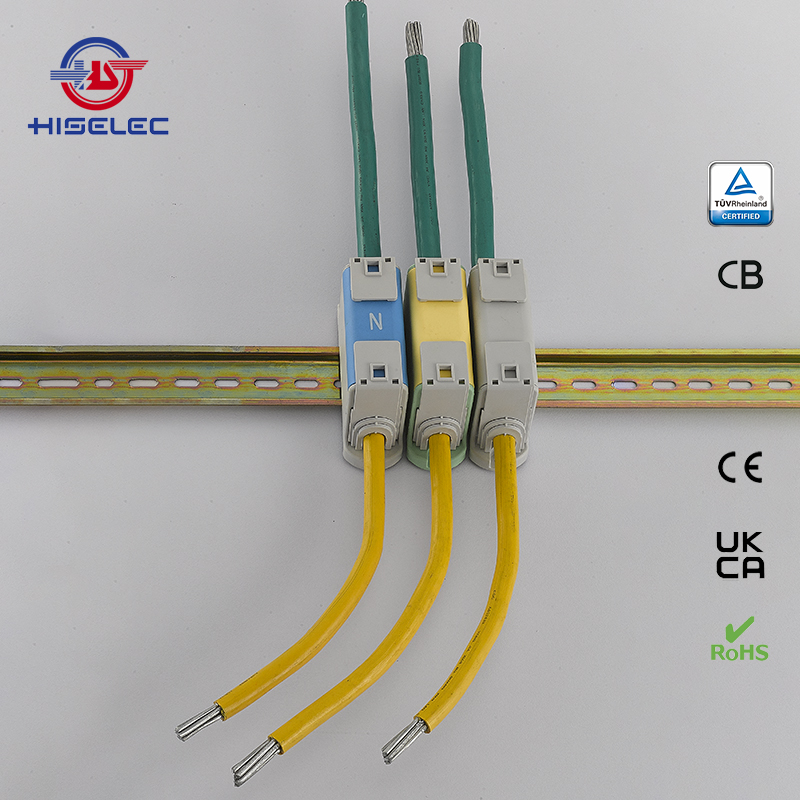

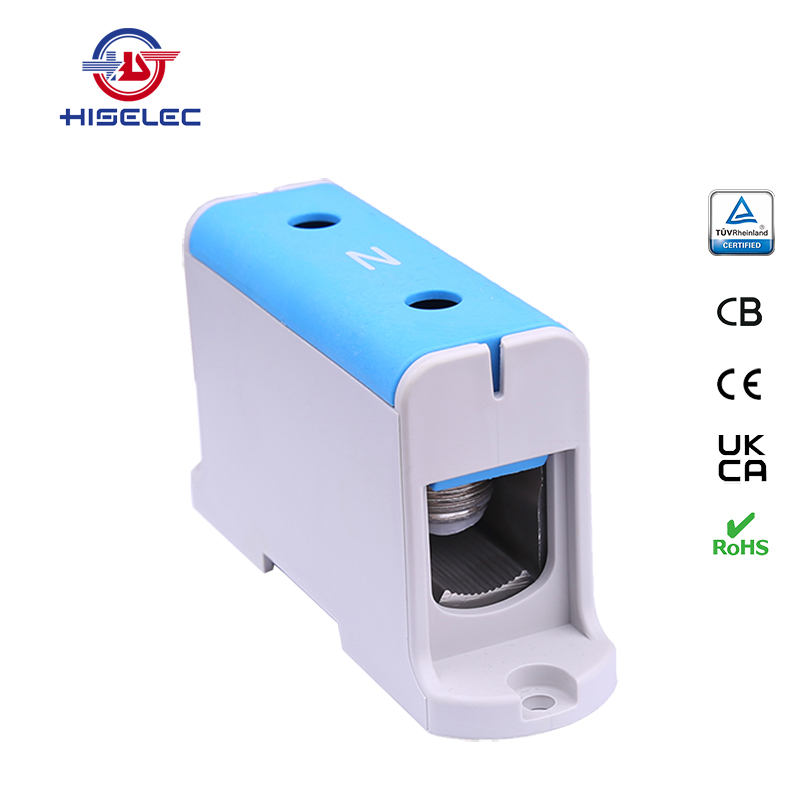

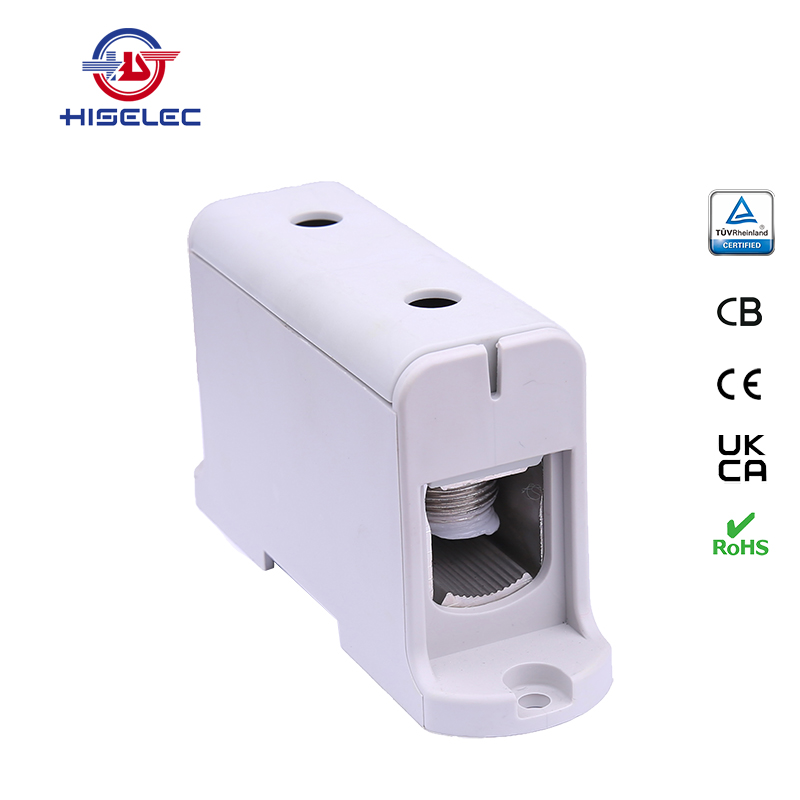

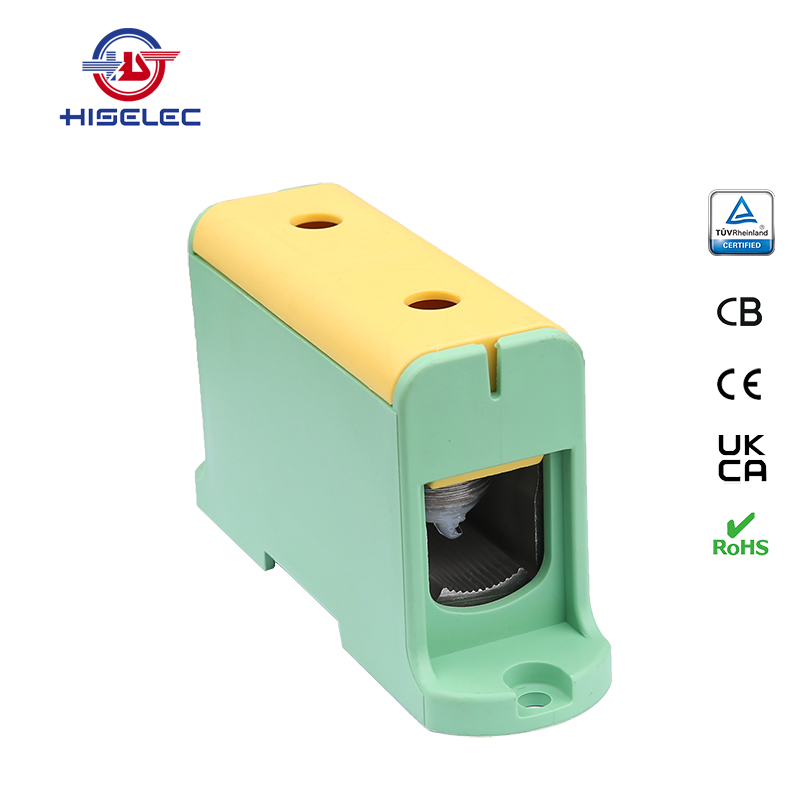

TR 240 series 1 way Al/Cu universal terminal block
-
Share:
|
Description
Technical
| Product code | Color |
Conductor (mm2) |
Nominal current In (A) |
Nominal insulation voltage Ui (V) |
Screw head hexagon diameter (mm) |
Tightening torque (Nm) |
Mounting |
Weight (g) |
Inner box package (pcs) |
Master carton package (pcs) |
||
| TR 240.1-1 | Grey |
1xAl/Cu 35-240 mm2 |
Cu 425A Al 380A |
1000V | 8mm |
12 Nm (35-70 mm2) 45 Nm (95-240 mm2)
|
Screw | 300g | 2 | 60 | ||
| TR 240.2-1 | Blue | |||||||||||
| TR 240.3-1 | Yellow/Green | |||||||||||
