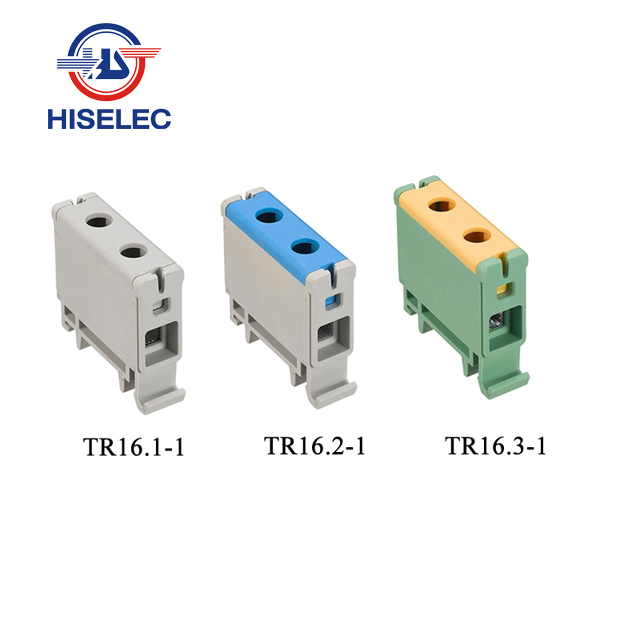

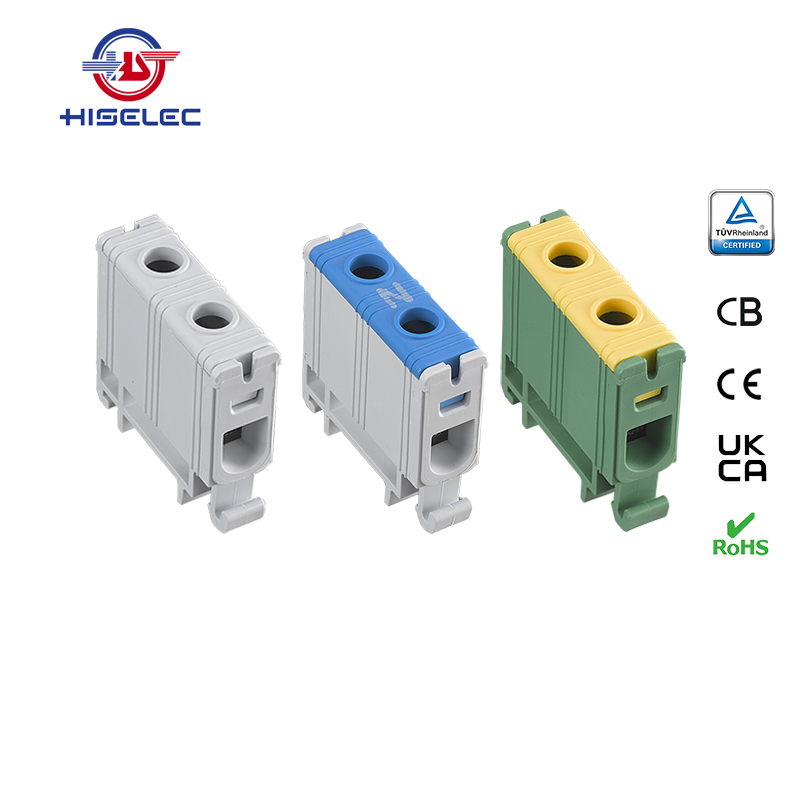

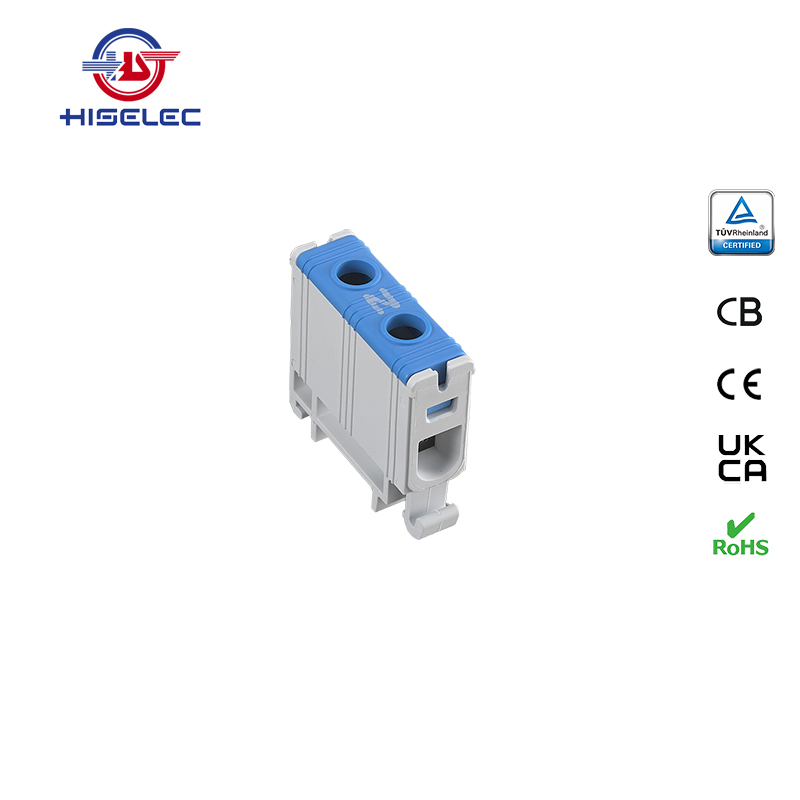

SAL16 series 1 way Al/Cu universal terminal block
-
Share:
Certificate:
TUV mark, CB, CE, UKCA, RoHS;
|
|
|
Standard conformity: IEC/EN60947-7-1 / IEC/EN60947-7-2 / IEC/EN 61238-1-1; |
|
Accepted conductor section area: Al 1.5-240mm2 / Cu 1.5-240mm2; |
|
Current: Cu 82A-425A / Al 75A-380A; |
Description
Technical
| Product code | Color |
Conductor (mm2) |
Nominal current In (A) |
Nominal insulation voltage Ui (V) |
Screw head hexagon diameter (mm) |
Tightening torque (Nm) |

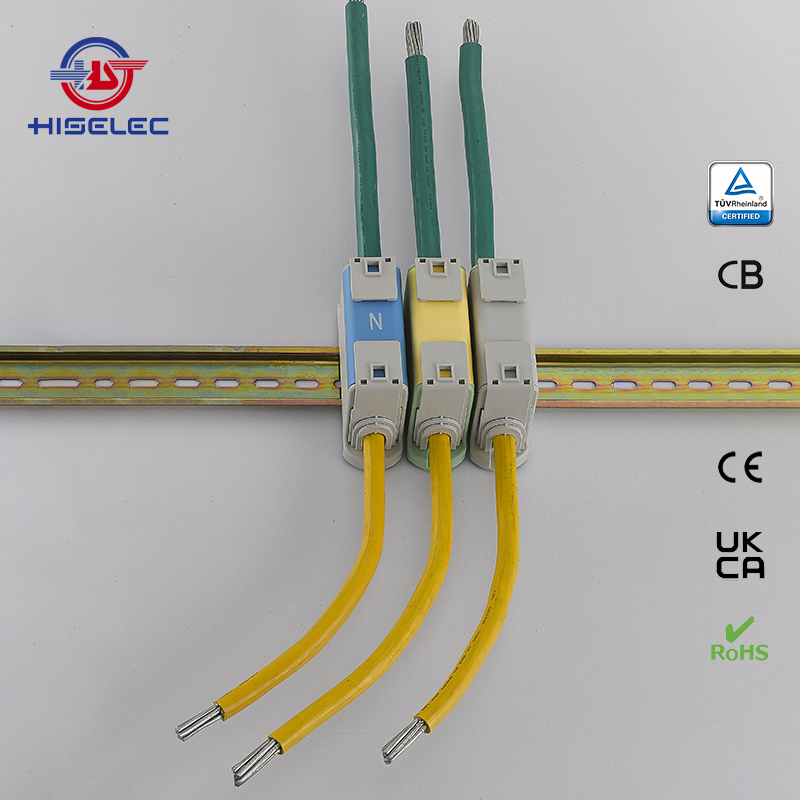

Mounting |
Weight (g) |
Inner box package (pcs) |
Master carton package (pcs) |
||

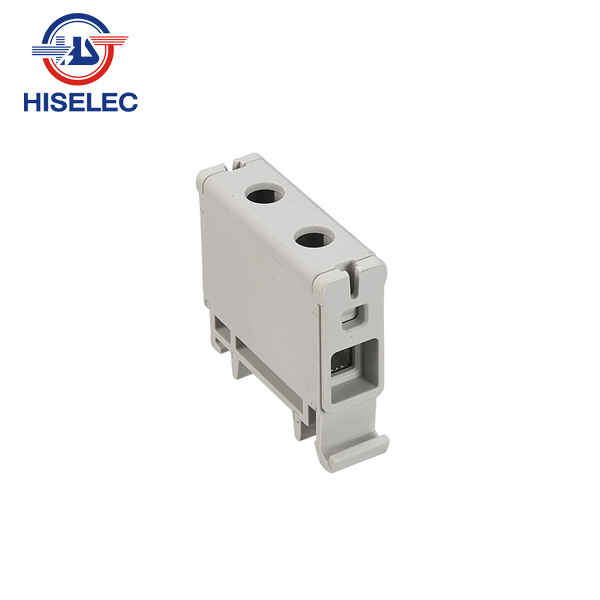

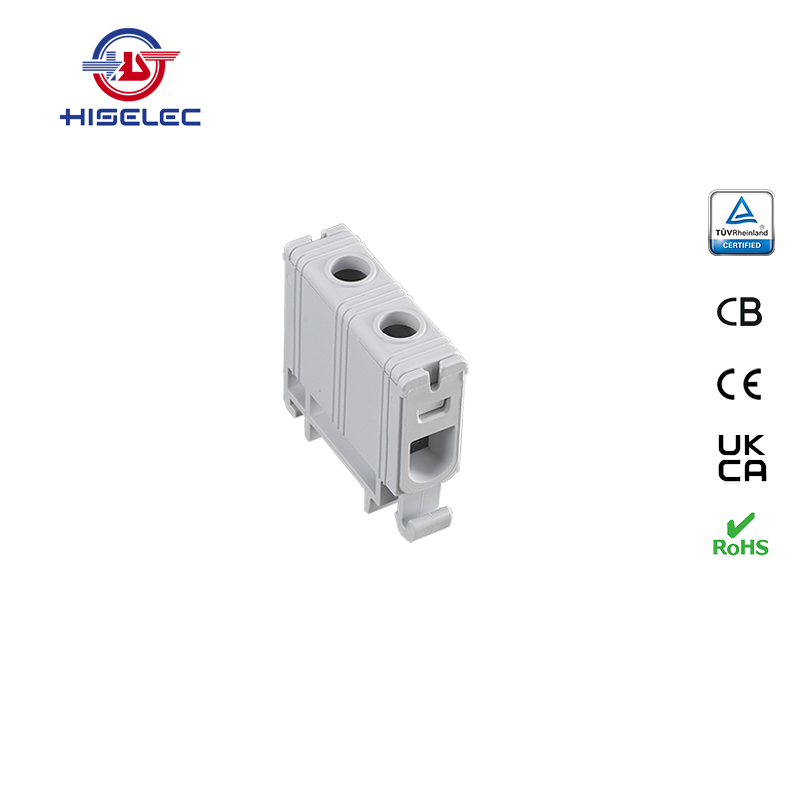

| SAL16-11 | Grey |
1xAl/Cu 1.5-16 mm2 |
Cu 82A Al 75A |
1000V | 4mm |
1.5 Nm (1.5 mm2) 3.5 Nm (2.5-6 mm2) 7 Nm (10-16 mm2) |
DIN-rail | 19.5g | 13 | 520 | ||

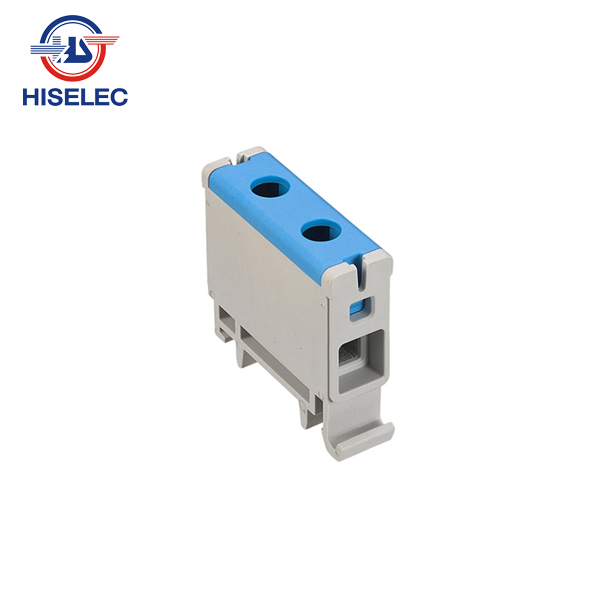

| SAL16-12 | Blue | |||||||||||

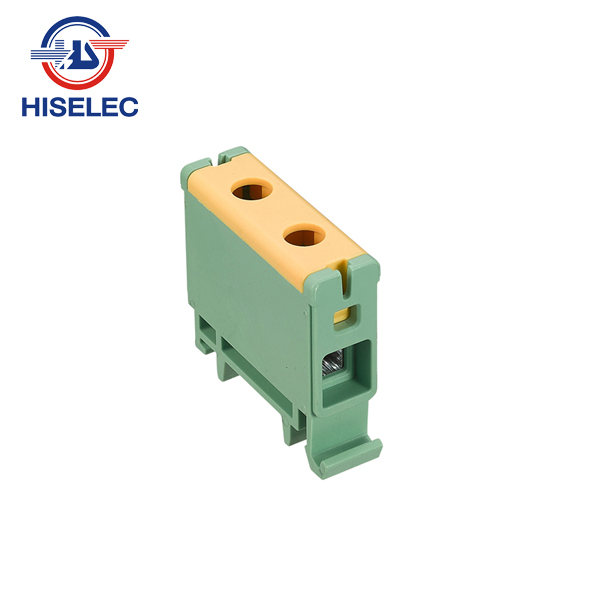

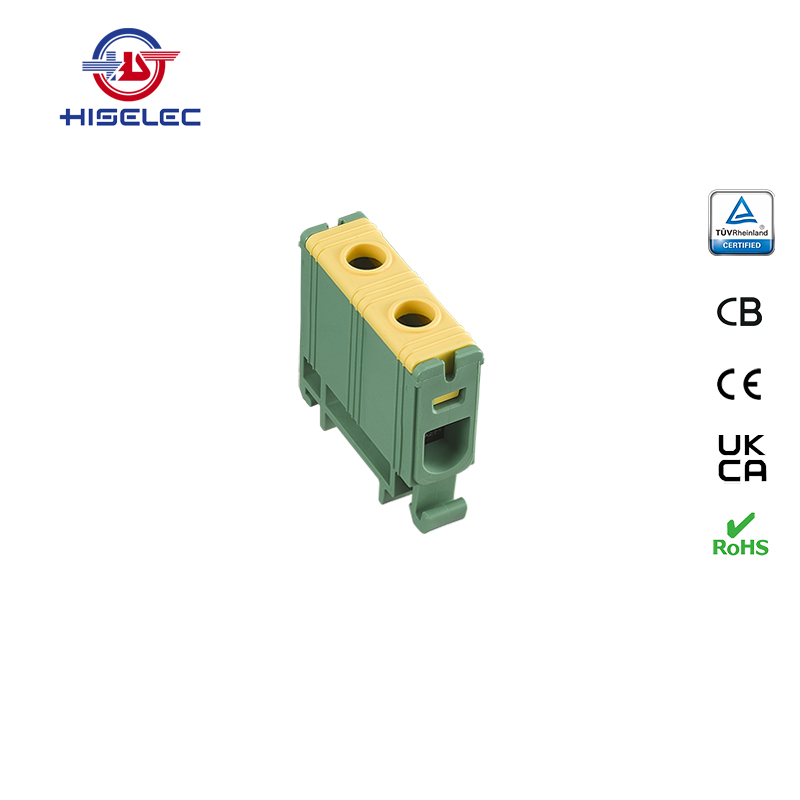

| SAL16-13 | Yellow/Green | |||||||||||
