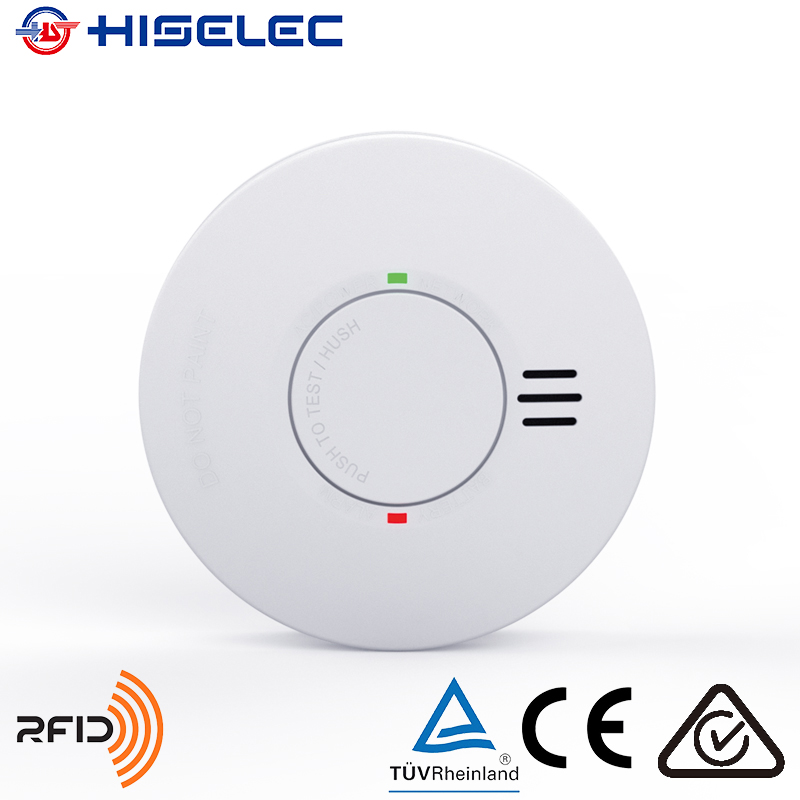

AC smoke detector RF SA12IRL
-
Share:
HISELEC smoke detector were designed with the most modernized structure and appearance.
We have both AC type and DC type, which also with 10 years long lifespan.
General idea it has below advantage:
1.Environmental protection;
2.Affordable and easy to user installation;
3.High Reliable;
4.Easy Integration;
Description
Product type | SA12IRL-E (Europe) / SA12IRL-A (Australia) |
Description | AC main power with 3V lithium 1500mAh replaceable battery backup, I/O or RF wireless for interconnection, 10 years battery life (433MHz or 868MHz). |
HISELEC had accumulated rich technical experience on hardware technology, application software, products reliability and circuits design. We have gained quantities of patents for utility models
and patent for invention. HISELEC have a top and professional strong R&D team with more than 10 experts, including industry design, hardware, software, firmware, structure, APP, ID and testing.
Our experts had been worked on respective industries more than 15 years in world-renowned brands and companies. HISELEC is regarded as one of the rapid growing company in security and smart industry.
HISELEC will continue developing new technology and products to meet the market demands and customer customization.
We are ready to protect the safety of the families and to create a smart comfortable living space for you.
HISELEC is actively to promote the international development strategy and establish a close working relationship with many international brands and Institutions of higher learning in China.
We will seize the opportunity to innovate our own products continuously and accelerate of internationalization to achieve economies of scale and become a leading ODM/OEM manufacturer.
We are always looking for sincere and mutual cooperators all over the world. Welcome to read our catalogue to find out your interested products and known more about our company.
Please do not hesitate to contact us.
Outstanding:
DC battery power supply with I/O port, ultra-low power consumption, 10-year-life span;Standby power consumption is lower than 0.1VA,
which will save more than 97% energy than other AC smoke alarms ( normal 7VA) in the market.
All-digital detection technology design can avoid false alarm caused by over 90% electronic noise. Wire interconnection up to 48 pieces.
Product Feature
1. Dual power supply,10 years long-life battery backup even without AC power;
2. I/O port for interconnection up to 48 pieces in a network by wire;
3. Standby power <0.1VA;
4. Digital technology, less false alarm, 5 years Warranty;
5. RF modular inside, handy for remote Test/Hush;
6. Apps/HA (Home Automation) system is available.
Technical
Product Type | SA12IRL-E (Europe) / SA12IRL-A (Australia) |
Certificate | TUV, CE, RCM |
Supply | Mains 200-240Vac with 3V DC replaceable Battery Backup |
Battery Type | CR123 or CR2/3 Lithium 1500mAh Battery |
Battery Life | >10 years |
Operation Current | AC max 0.02A |
Detection Type | Smoke |
Interconnectable | Hard wires by I/O ports up to 48 pieces or RF interconnection up to 24 pieces |
RF Frequency | 868MHz (Europe) or 433MHz (Australia) |
Function Available | Hush Function |
Self-test of smoke detection | |
Local alarm | |
Control Type | Button for test/ hush function |
Sound Pattern | ISO8201 |
Smoke Sensitivity | 0.1-0.18dB/m |
Directional Depending | <1.4 |
Response Time | Approx. 8s |
Noise Level | Minimum 85 dB at 3m |
Time Delay Range | 8-15 min. for hush |
Local Signal | Sound: Alarm |
Sound: Signal | |
Visual: 1 green LED light for Power indicator. | |
Visual: 1 red LED light for warning and low battery. | |
Type Of Installation | Indoor |
Device Mounting | Surface |
Fixing Mode | By screws |
Warranty | 5 years |
Diameter | 120 mm |
Height | 40 mm |
Ambient Air Temperature For Operation | 0......45 C° |
Relative Humidity | 10......92% |
Standards To Comply | EN14604-2005, AS3786-2014 |
