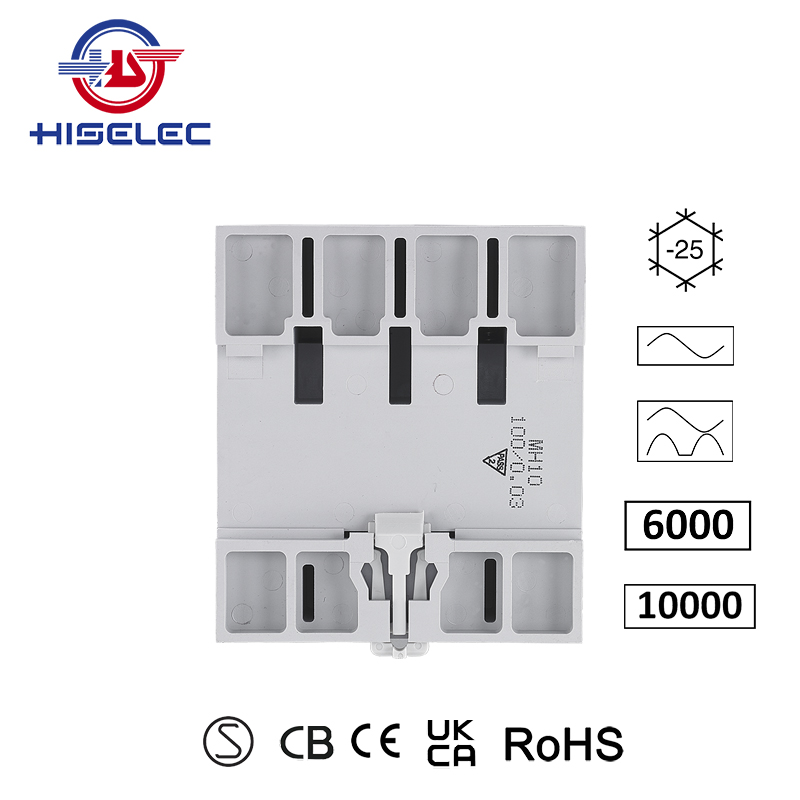

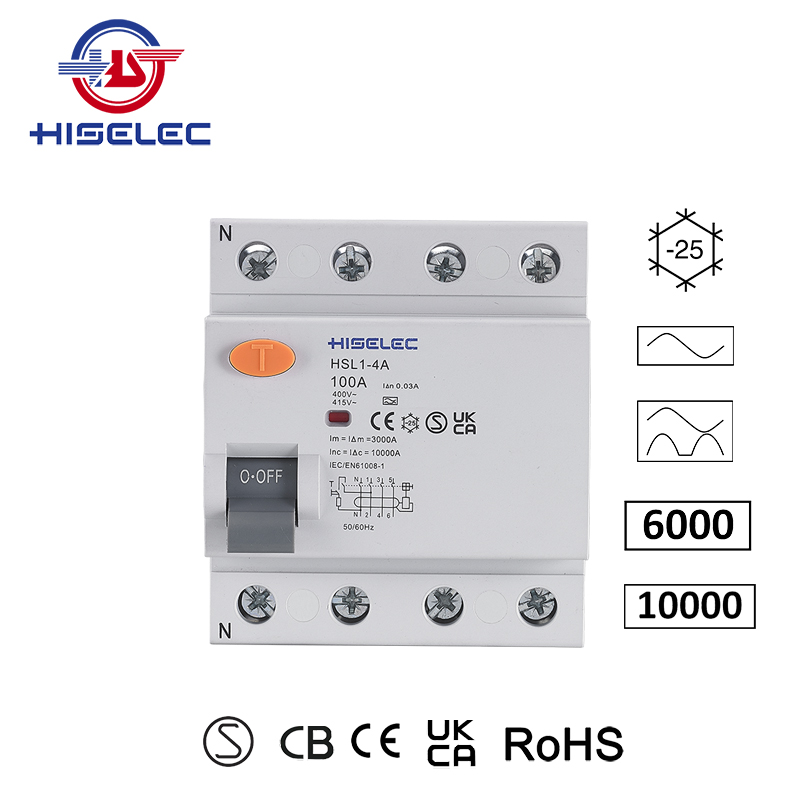

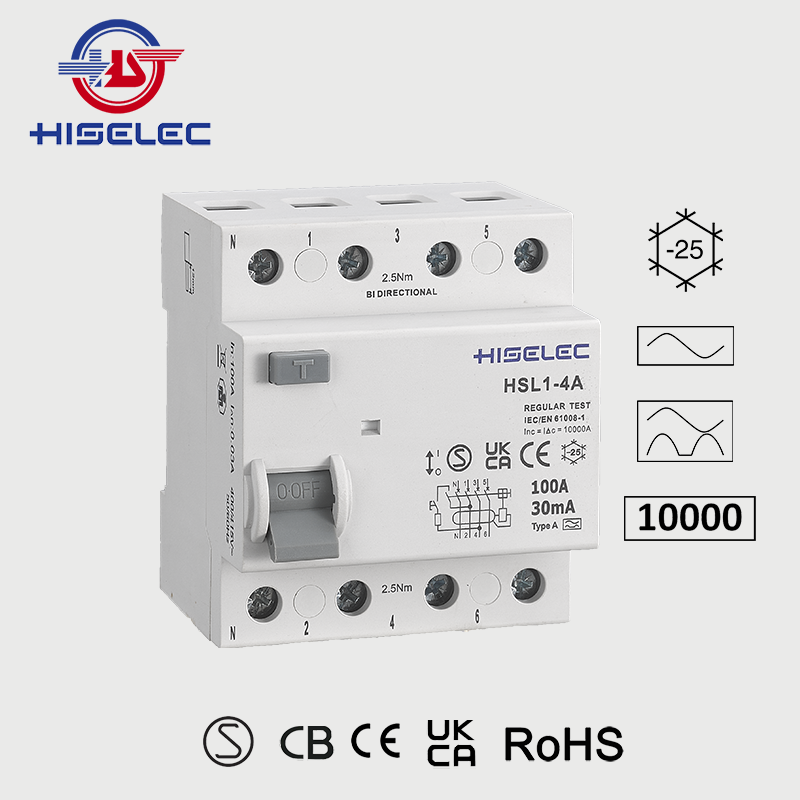

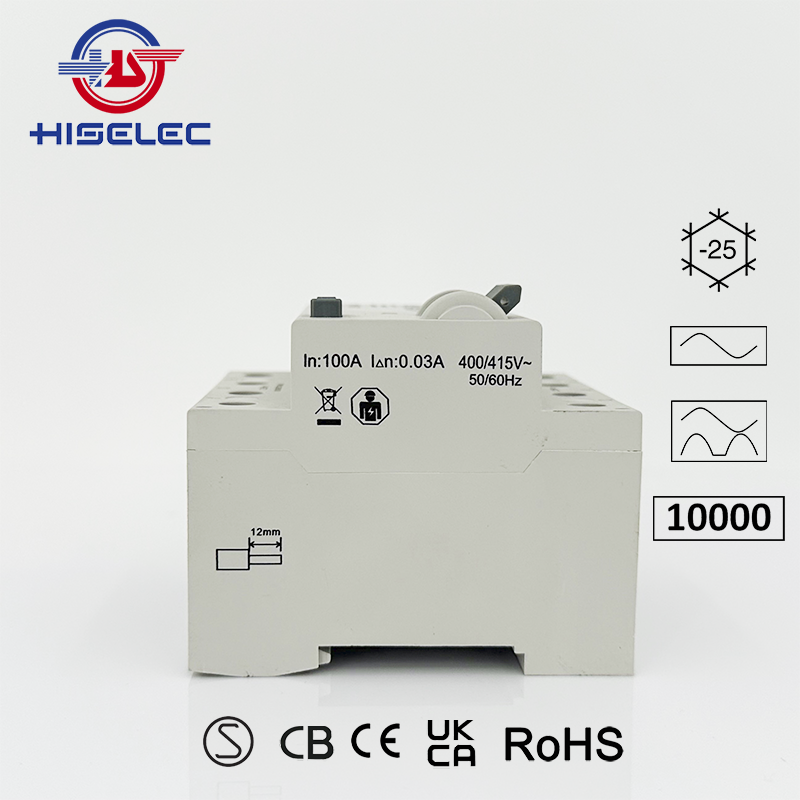

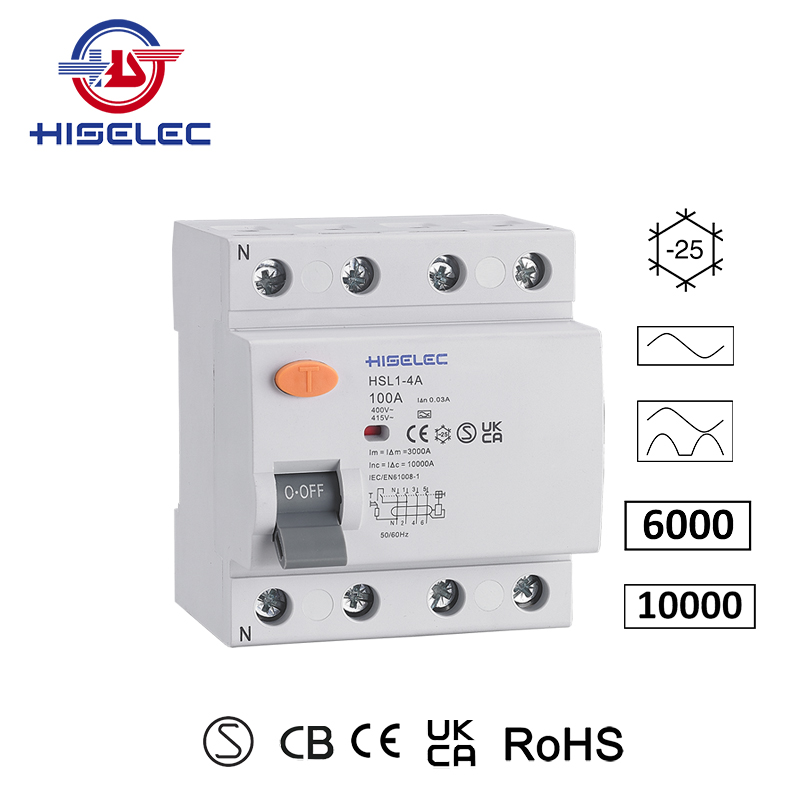

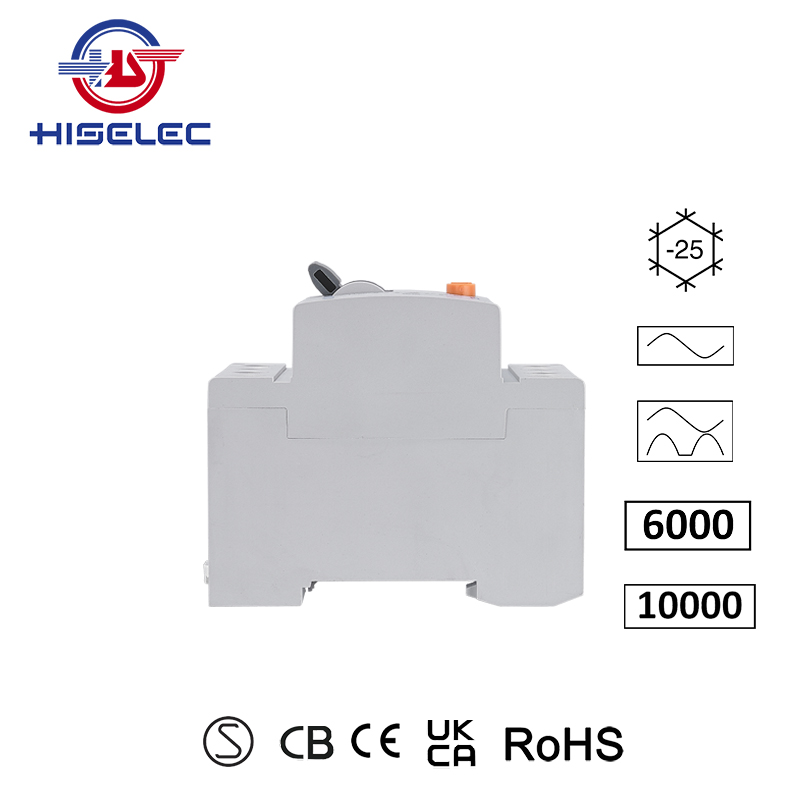

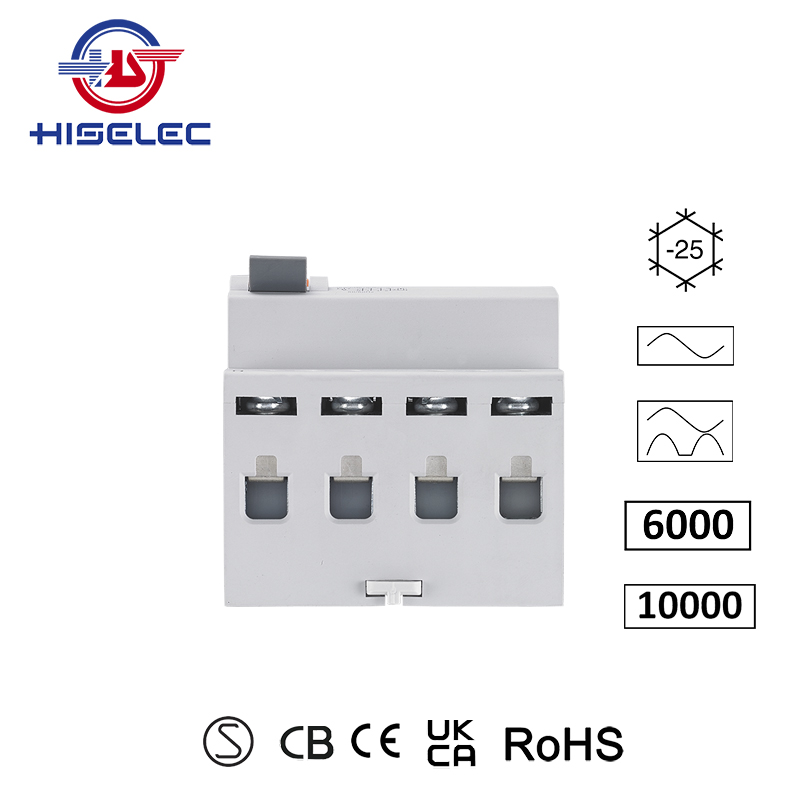

RCCB HSL1-4A type A 10kA 3P+N
-
Share:
The HSL1 series 10kA type A 1P+N & 3P+N RCCBs (residual current-circuit breaker) which can automatically and immediately cut off power supply once people suffers from electric shock or leakage current higher than specification value, so it can protect people’ s security and avoid the damage to equipment. The RCCB comes in 1P+N 36mm width (2 modules) and in3P+N 72mm width (4 modules) and this in combination with a high breaking capacity of 10kA. The series ensures the best possible safety for people and equipment.
Description
HSL1 series type A RCCB compliant to product standard IEC/EN 61008-1, IEC/EN 61008-2-1 and with the following main technical features:
• Rated breaking capacity 10 kA;
• Rated residual making and breaking capacity 800A;
• Electromagnetic (IEC/EN 61008-1, IEC/EN 61008-2-1);
• Type A & Type AC;
• Sensitivity 30 -100 - 300 mA;
• Rated current 25/32/40/63/80/100 A;
Application benefits:
• Supply possible both from top and bottom;
• Fork type busbar connection (above and below) up to 16mm²
and cable connection up to 25mm² cables;
• Easy trouble shooting and reduced downtime
for maintenance operations thanks to the earth
fault indicator (blue blue/red on the window);
Technical
Type | HSL1-2A | HSL1-4A | |||
Standards | IEC/EN 61008-1, IEC/EN 61008-2-1; | ||||
Certificate | SEMKO, CB, CE, UKCA, RoHS | ||||
Country of origin | CHINA | ||||
Electrical features |
Type (wave form of the earth leakage sensed) |
Type A Type AC |
|||
Number of poles | 2P | 4P | |||
Rated current | In | A | 25, 32, 40, 63, 80, 100 A | 25, 32, 40, 63, 80, 100 A | |
Rated sensitivity | IΔn | mA | 30, 100, 300 mA | 30, 100, 300 mA | |
Rated voltage | Ue | V | 220/230/240 V | 380/400/415 V | |
Operating time | Type A / Type AC | Instantaneous | |||
Insulation voltage | Ui | V | 500V AC | ||
Overvoltage category | III | ||||
Pollution degree | 2 | ||||
Operating voltage of circuit test | V | 187 - 264 V | 230 - 485 V | ||
Rated frequency | Hz | 50/60 Hz | |||
Rated breaking capacity acc. to IEC/EN 61008-1 | Inc | A | 10,000 A | ||
Rated residual making and breaking capacity acc.to IEC/EN 61008-1 |
IΔm | A | 800 A | ||
Rated impulse withstand voltage (1.2/50μs) | Uimp | kV | 4 kV | ||
Mechanical features | Housing | Insulation group I - II, RAL 7035 | |||
Toggle | Insulation group II, RAL 5017 | ||||
Test button | Insulation group II, RAL 2000 | ||||
Contact position indication | Green / Red window | ||||
Earth fault trip indication | White window | ||||
Electrical life | Operations | 4000 cycles | |||
Mechanical life | Operations | 10000 cycles | |||
Protection degree acc. to EN 60529 | Housing | IP4X | |||
Terminals | IP2X | ||||
Shock resistance acc. to IEC/EN 60068-2-27 | 25g - 2 shocks - 13ms | ||||
Vibration resistance acc. to IEC/EN 60068-2-6 | 0.1 mm or 1 g - 20 cycles at 5…150…5 Hz | ||||
Environmental conditions (damp heat) acc. to IEC/EN 60068-2-30 | °C/RH | 28 cycles with 55°C/90-96% and 25°C/95-100% | |||
Reference temperature for setting of thermal element | °C | 30 °C | |||
Ambient temperature (with daily average ≤ +35 °C) | °C | -25… +40 °C | |||
Storage temperature | °C | -40… +70 °C | |||
Installation | Terminal type | Twin-purpose terminal (lift / open-mouthed) | |||
Terminal size for cables | bottom / top | mm² | 25/35 mm² | ||
Terminal size for PIN busbar | bottom / top | mm² | 10/16 mm² | ||
Solid /stranded wiring |
1x 1mm² - 35mm² 2 x 1mm² - 16mm² * |
||||
Flexible wires with or without ferrules |
1x 1mm² - 25mm² 2 x 1mm² - 10mm² * |
||||
Tightening torque | bottom / top | 2 Nm | |||
Stripping length of the cable | 10 mm | ||||
Mounting |
On DIN rail EN 60715 (35mm) by means of mounting clip |
||||
Mounting position | Any | ||||
Connect from | Top/bottom terminals | ||||
Dimensions (H x W x D) | mm | 90 x 36 x 72 mm | 90 x 72 x 72 mm | ||
Weight | kg | 0.18 kg | 0.31 kg | ||
Package |
Packing A (Individual box) |
Quantity | pieces | 1 | 1 |
Dimension (H*W*D) | mm | 90*37*78 mm | 88*75*80 mm | ||
Weight | kg | 0.2 kg | 0.33 kg | ||
Packing B (*A) (Master carton) |
Quantity | pieces | 60 | 30 | |
Dimension (H*W*D) | mm | 470*262*177 mm | 400*280*185 mm | ||
Weight | kg | 12.48 kg | 10.42 kg | ||
Combination with auxiliary elements |
Auxiliary contact | NA (yes) | NA (yes) | ||
Alarm contact | NA (yes) | NA (yes) | |||
Shunt trip | NA (yes) | NA (yes) | |||
Auxiliary contact for bottom fitting | NA (yes) | NA (yes) | |||
Undervoltage release | NA (yes) | NA (yes) | |||
Overvoltage release | NA (yes) | NA (yes) | |||
Motor operating device | NA (yes) |
NA (yes) |
