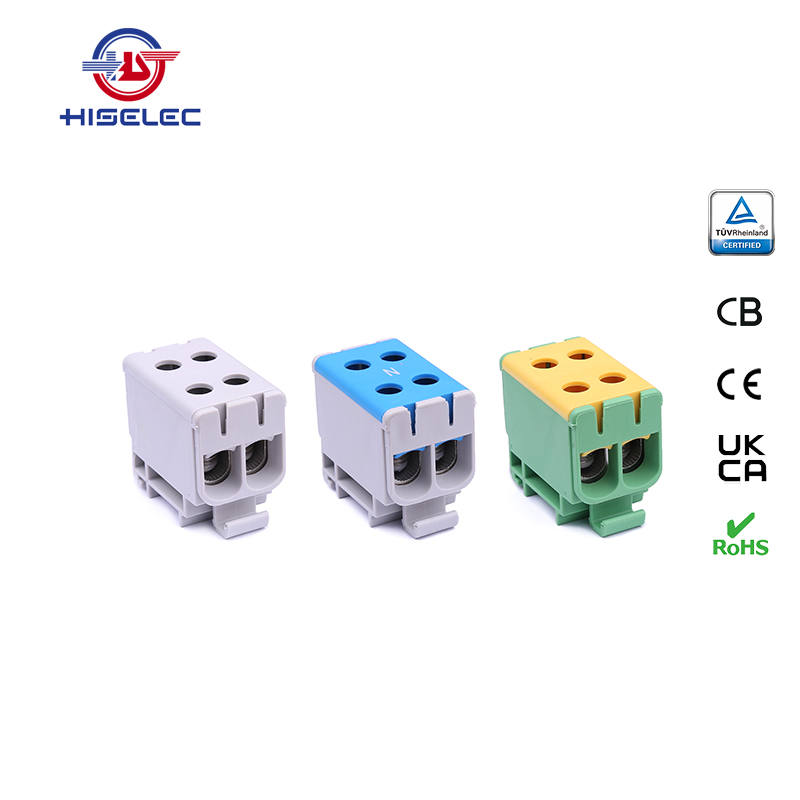

TR 50 series 2 ways Al/Cu universal terminal block

TR 50 series 2 ways Al/Cu universal terminal block

TR 50 series 2 ways Al/Cu universal terminal block

    Share:

Conformity: CE, ROHS
Standards: EN 60947-7-1 / EN 61238-1
Cross-section range: Al 1.5-240mm2 / Cu 1.5-240mm2
Nominal current range: 75A-425A

Description

Technical

Product code Color Conductor
(mm2)
Nominal current In
(A)
Nominal insulation voltage Ui
(V)
Screw head hexagon diameter
(mm)
Tightening torque
(Nm)
Mounting Weight
(g)
Inner box package
(pcs)
Master carton package
(pcs)

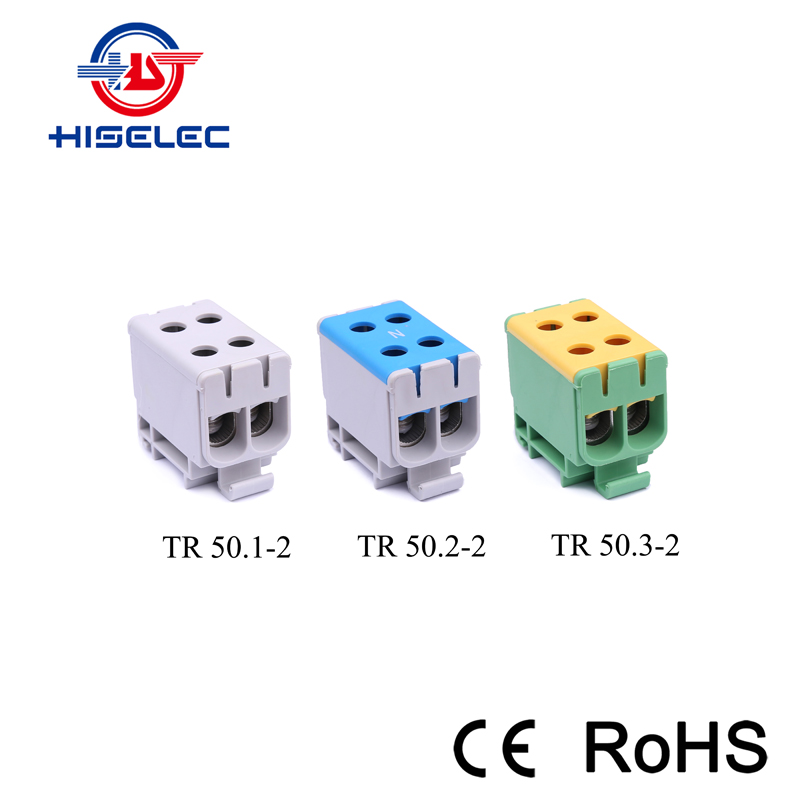

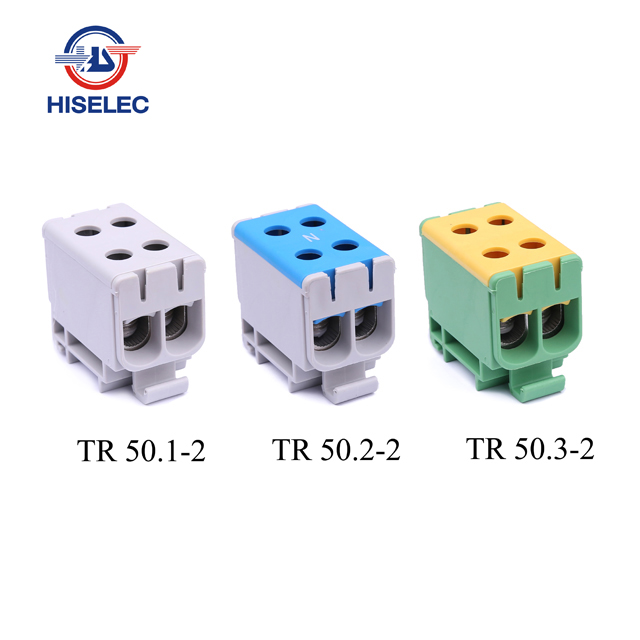

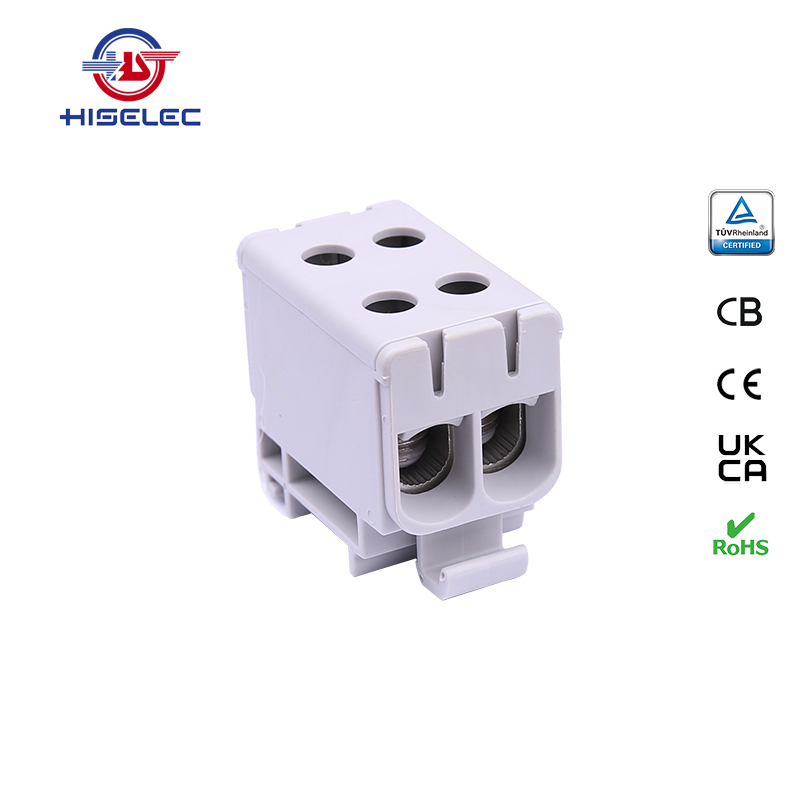

TR 50.1-2 Grey 2xCu 2.5-50 mm2
2xAl 6-50 mm2
Cu 160A
Al 145A
1000V 5mm 4 Nm (2.5-4 mm2)
12 Nm (6-50 mm2)
DIN-rail 60g 6 240

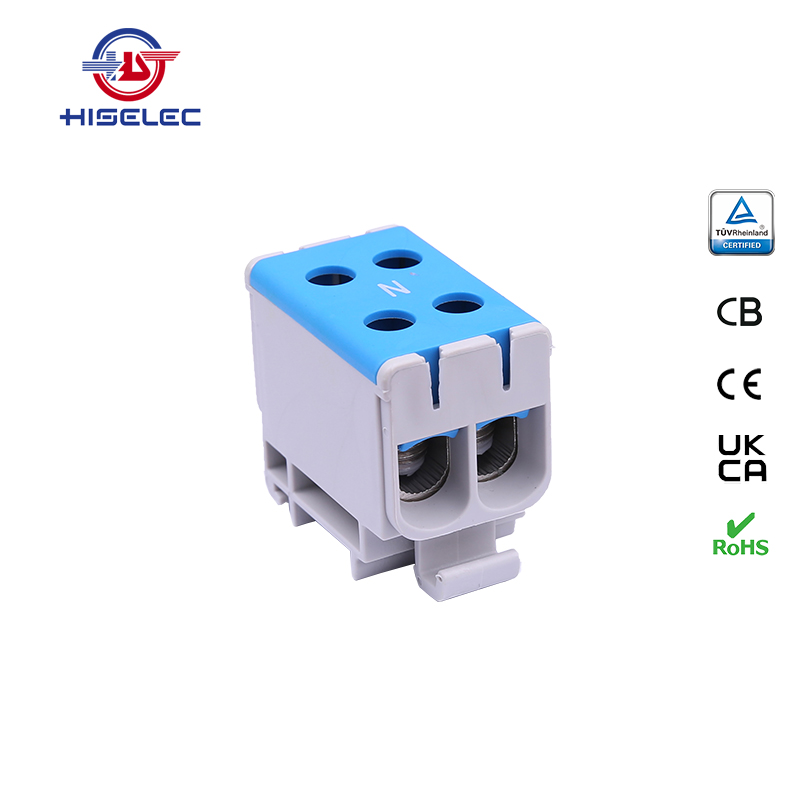

TR 50.2-2 Blue

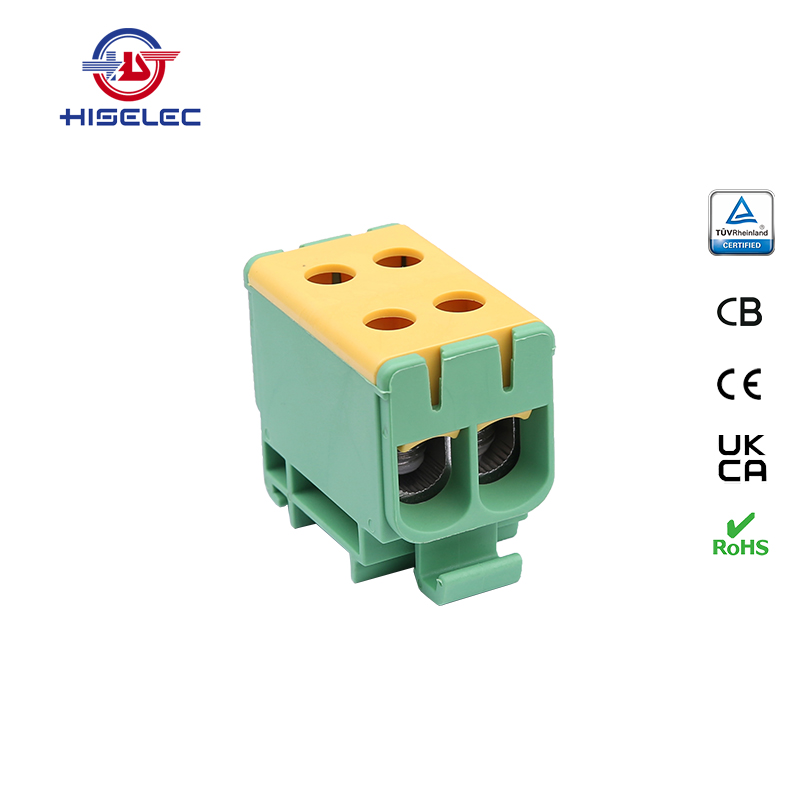

TR 50.3-2 Yellow/Green
