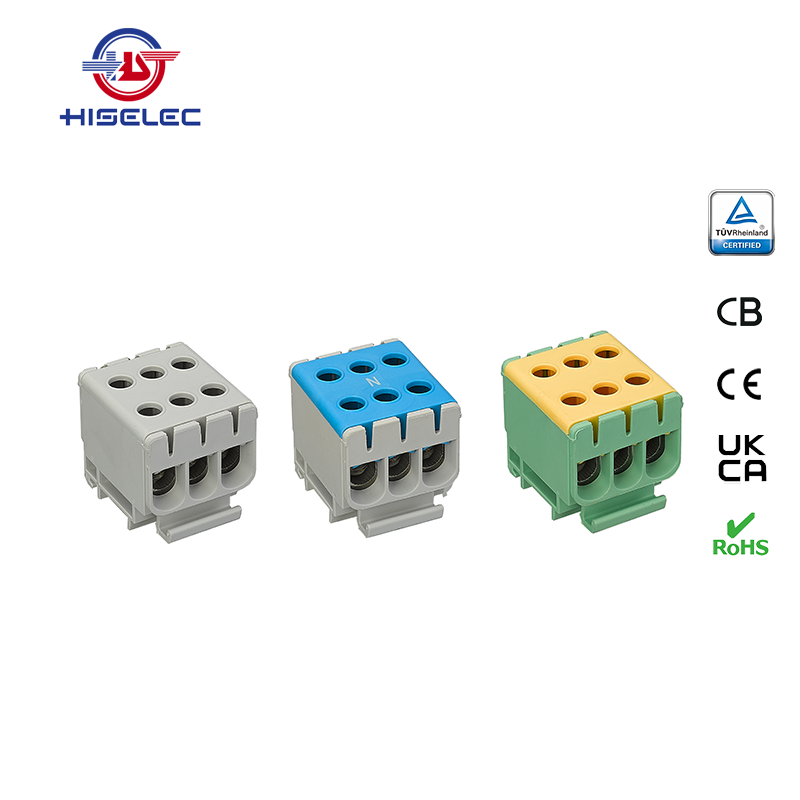

TR 50 series 3 ways Al/Cu universal terminal block
-
Share:
|
Description
Technical
| Product code | Color |
Conductor (mm2) |
Nominal current In (A) |
Nominal insulation voltage Ui (V) |
Screw head hexagon diameter (mm) |
Tightening torque (Nm) |

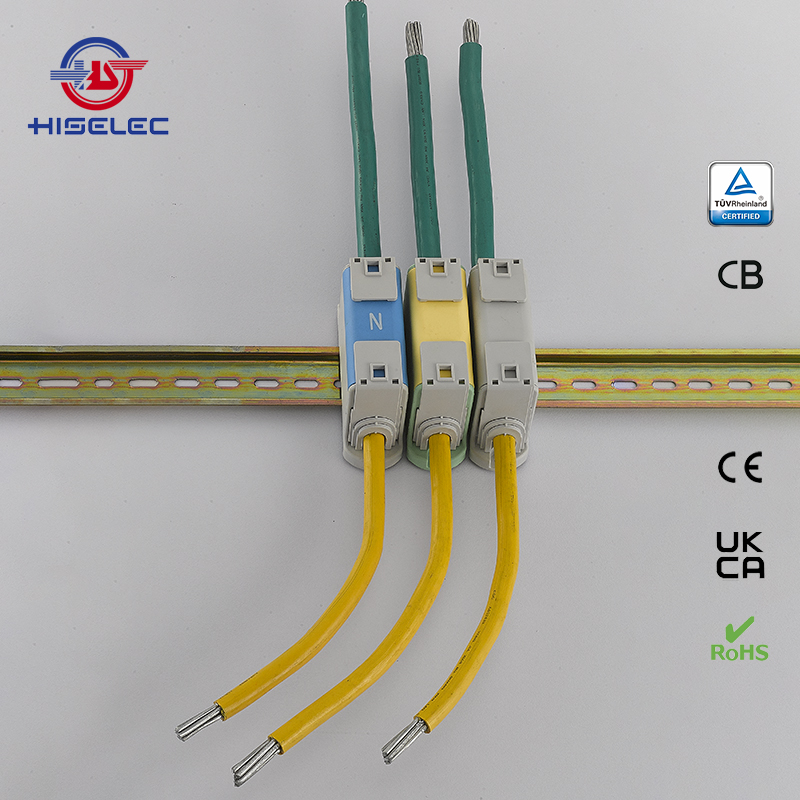

Mounting |
Weight (g) |
Inner box package (pcs) |
Master carton package (pcs) |
||

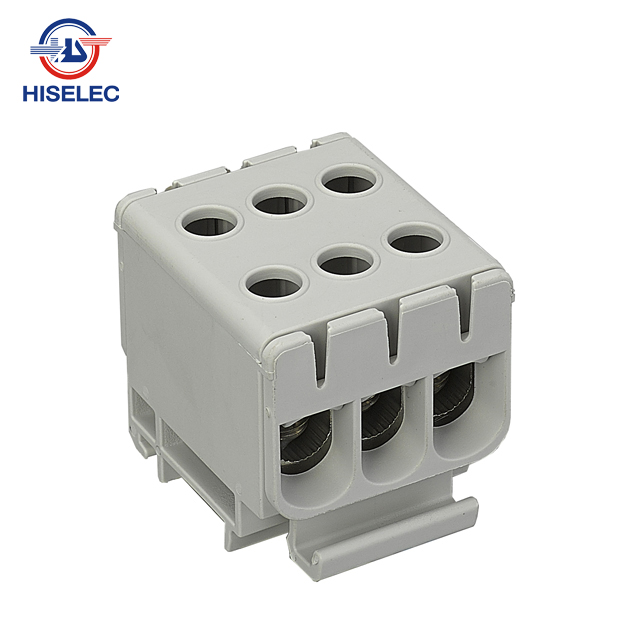

| TR 50.1-3 | Grey |
3xCu 2.5-50 mm2 3xAl 6-50 mm2 |
Cu 160A Al 145A |
1000V | 5mm |
4 Nm (2.5-4 mm2) 12 Nm (6-50 mm2) |
DIN-rail | 86g | 4 | 160 | ||

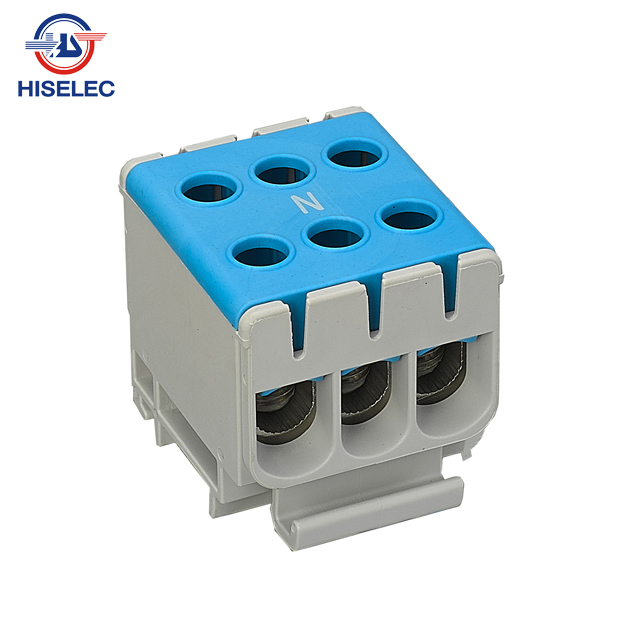

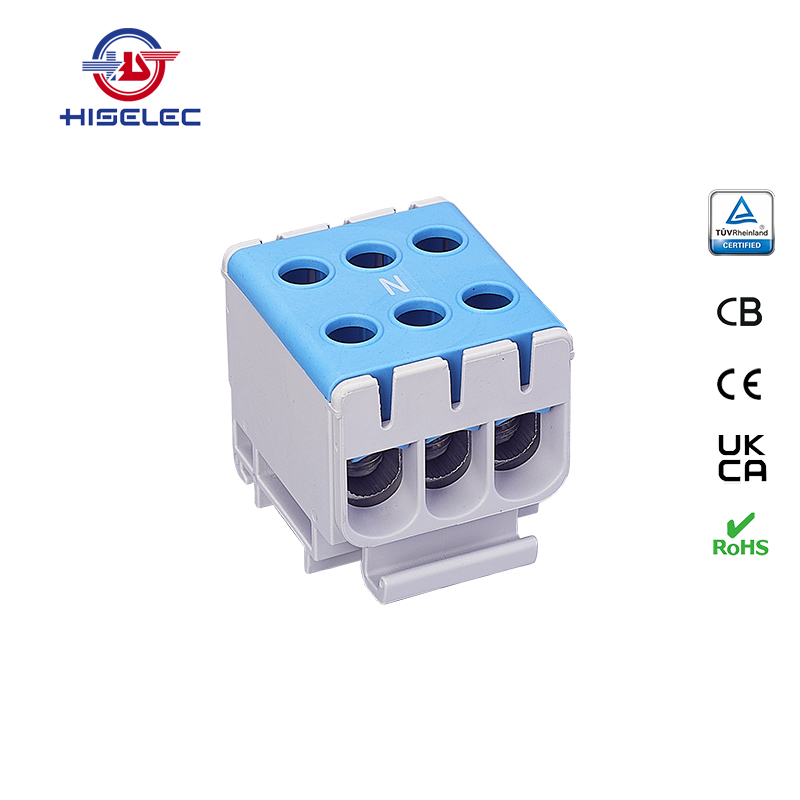

| TR 50.2-3 | Blue | |||||||||||

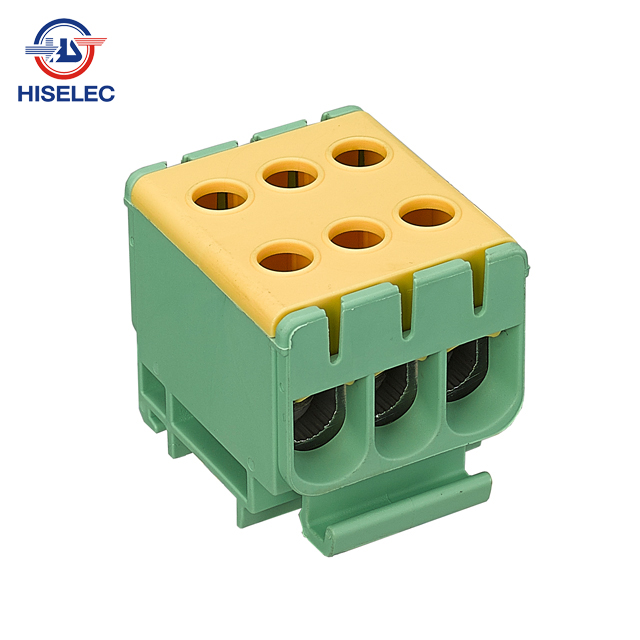

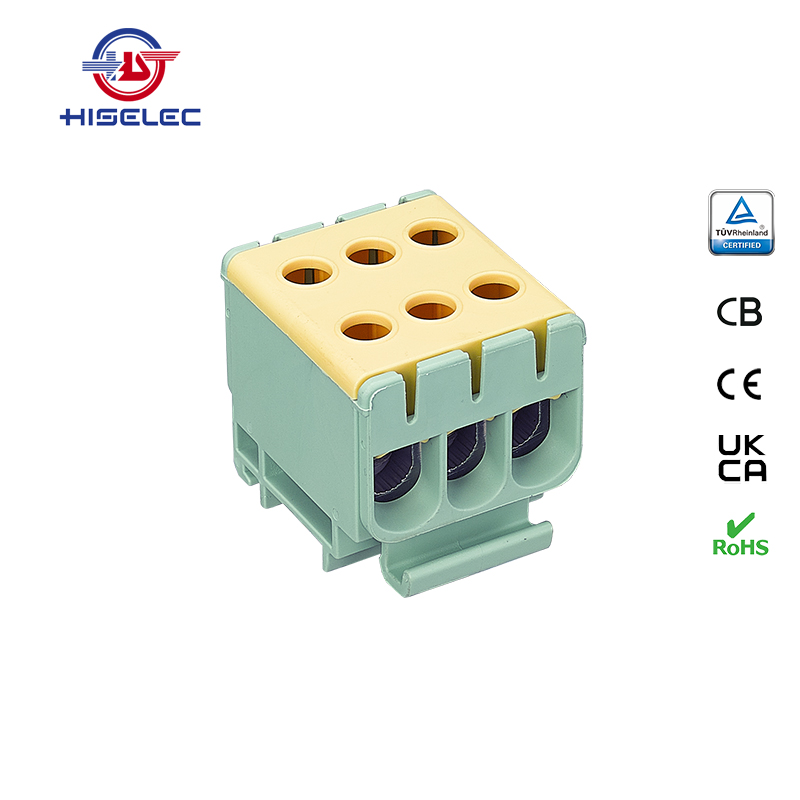

| TR 50.3-3 | Yellow/Green | |||||||||||
