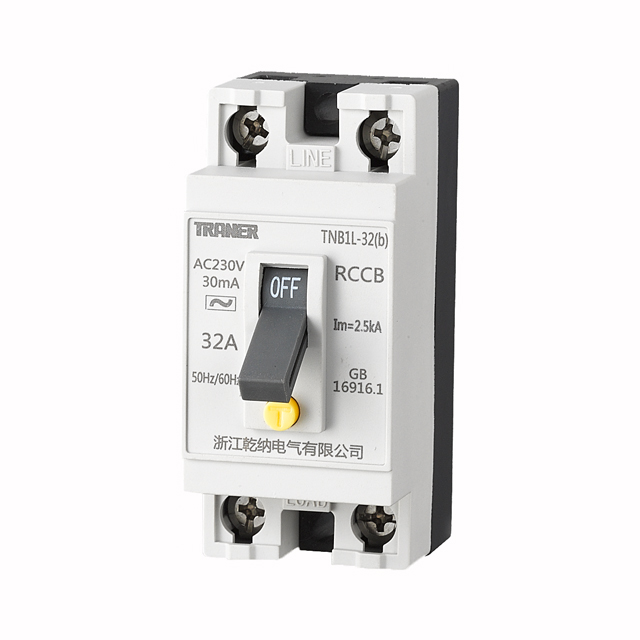

TNB1L-32(b) RCCB

TNB1L-32(b) RCCB

TNB1L-32(b) RCCB

    Share:

Product type: TNB1L-32(b)
Protection: Ground fault
Rated current(A), In: 16A, 20A, 25A, 32A

Description

Technical

TNB1L-32 series RCCB
Product type TNB1L-32(b)
Protection Ground fault
Rated current(A) 16A, 20A, 25A, 32A
Rated residual current Operating, IΔn(mA) 15mA, 30mA
Non-operating, IΔno(mA) 7.5mA, 15mA
Poles 2 poles
Rated voltage(V) 110V AC, 220V AC
Residual current off-time 0.1 s
Standard IEC/EN 61008-1, GB16916.1
Approval CE, CCC
Type of trip Ground fault Electronic
Breaking capacity(kA) 2.5 kA
Endurance Electrical life 1000 operations
Mechanical life 2000 operations
Material of body Base Plastic / Bakelite
Cover in grey color Plastic
Cover in black color Bakelite
Type of operation AC
Length*Width*Height(mm) 70mm*32mm*53mm
