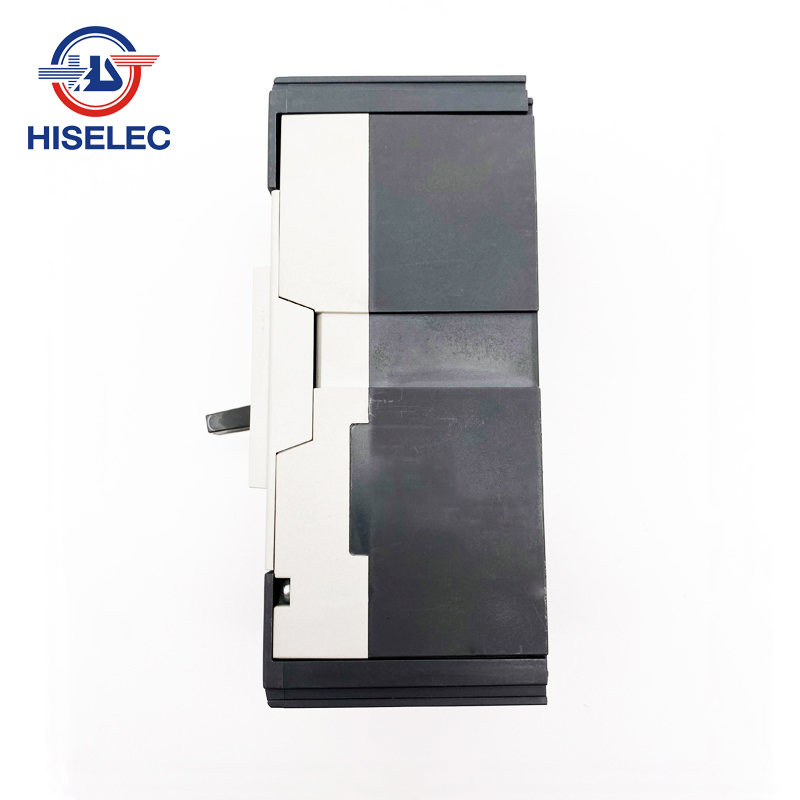

TRM MCCB

1.Small size, high capacity;

2.Rated current have fixed type and adjustable type(0.8In-1.0In);

3.Modular structure design, better performance;

4.Ics=100% Icu(Except single pole MCCB);

Description

TRM series circuit breakers and auxiliaries comply with the following international standard:

IEC/EN 60947-1: Low-voltage switchgear and controlgear-Part 1: General rules

IEC/EN 60947-2: Low-voltage switchgear and controlgear-Part 2: Circuit breakers


TRM series MCCB (Standard use environment for TRM series MCCB)
1. Ambient temperature: Within the range of -5ºC--+55ºC(However, when the temperature exceed 40ºC,it should be considered to reduce the capacity to use);
2. Relative humidity: Within the range of 45%--85%;
3. Altitude: 2000m or less(However, if it exceeds 1000m, atmosphere correction through humidity test and withstand voltage test can be considered);
4. Atmosphere where excessive steam, oil steam, smoke, dust, salt and other corrosive materials do not exist;


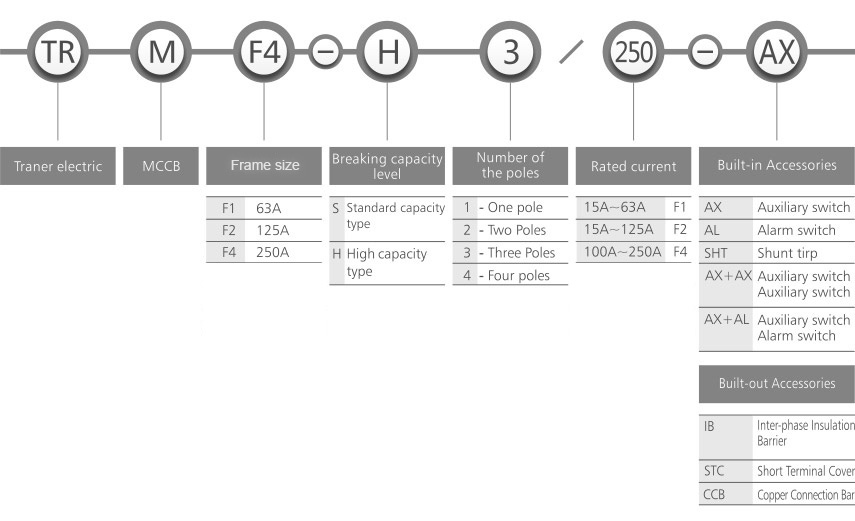

Classification:
According to the poles:                                        1-pole, 2-poles, 3-poles, 4-poles
According to the breaking capacity:                       S-type, H-type
According to the rated current:                               Fix type, Adjustable type(08In-1.0In)

Technical

Frame size TRMF2(125A)
Breaking capacity code S H
Product code and pole 1P 2P 3P 4P 1P 2P 3P 4P
TRMF2-S1 TRMF2-S2 TRMF2-S3 TRMF2-S4 TRMF2-H1 TRMF2-H2 TRMF2-H3 TRMF2-H4
Rated current, In(A) 15A, 20A, 30A, 40A, 50A, 60A, 75A, 80A, 100A, 125A
Adjustable part Rated current setting(0.8In~1.0In) X X
Lockup device for operating handle X X
Rated operational voltage, Ue(V), AC 50/60Hz 240V/415V
Rated insulation voltage, Ui(V) 1000V
Rated impulse withstand voltage, Uimp(kV) 8kV
Standard Conformity with IEC/EN 60947-2
Rated frequency(Hz) 50/60Hz
Rated short-circuit breaking capacity, Icu(kA)
AC 240V 18kA 35kA 25kA 50kA
415V - 18kA - 35kA
Ics=%*Icu 50% 100% 50% 100%
Mechanical life(circle) 8500
Electrical life(circle) 1500

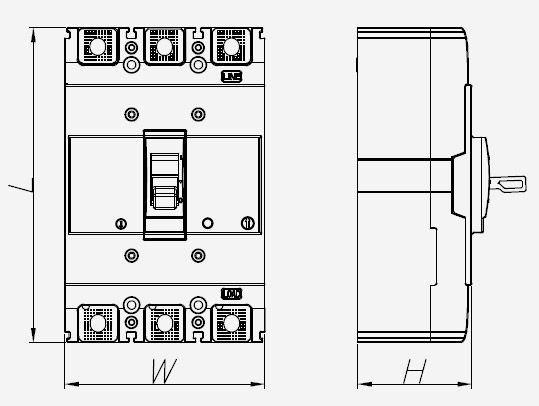

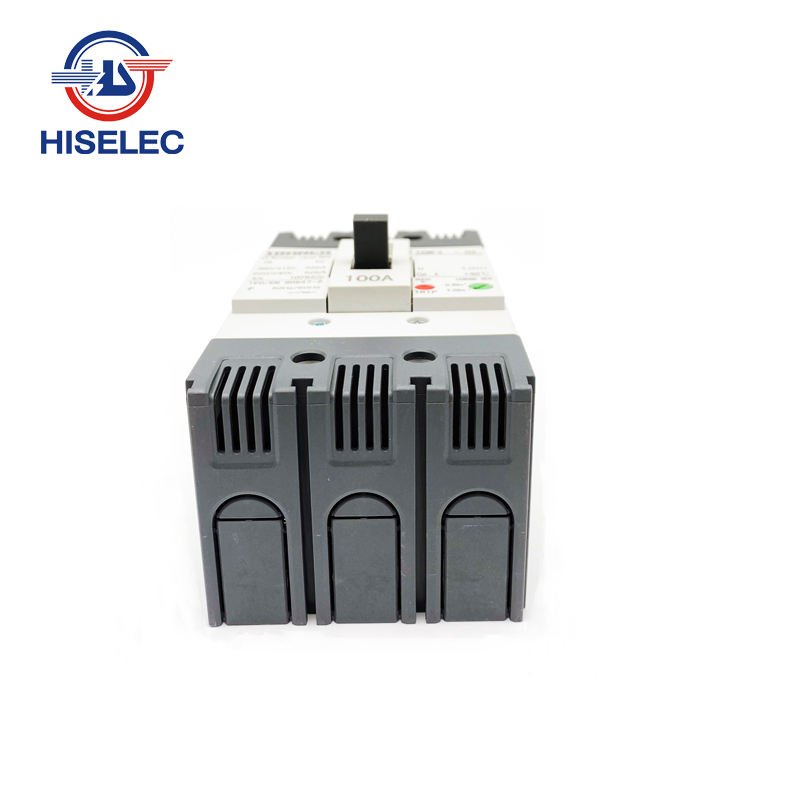

Dimension

Length*Width*Height(mm)

1-pole 130mm*25mm*60mm
2-poles 130mm*50mm*60mm
3-poles 130mm*75mm*60mm
4-poles 130mm*100mm*60mm

Built-in accessory:

Built-out accessory:
