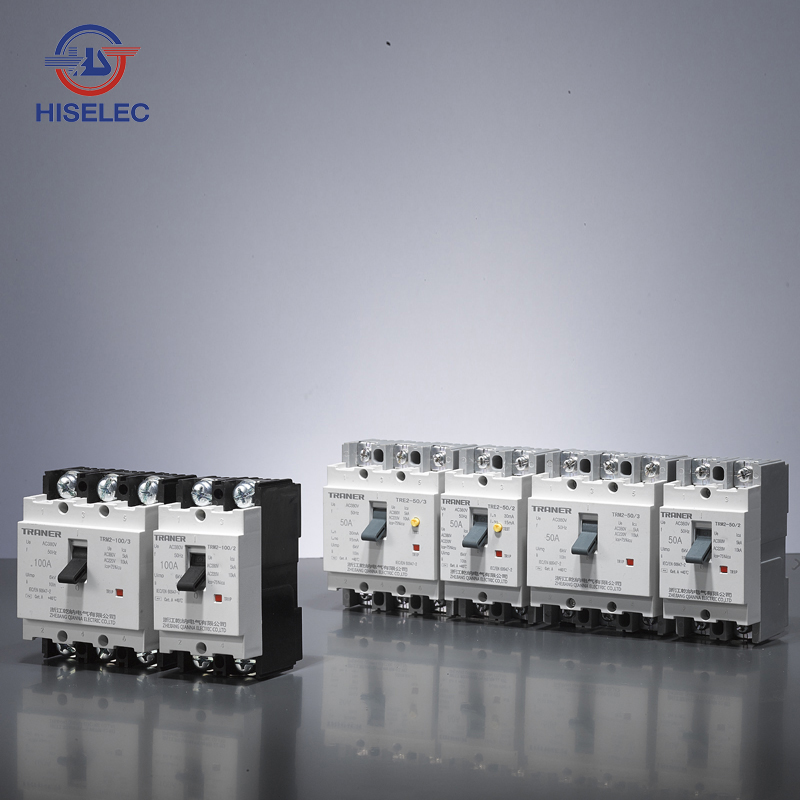

MCCB TRM2-50/3

MCCB TRM2-50/3

MCCB TRM2-50/3

    Share:


TRM2 FRAME.50 MCCB

1.Small size, high capacity;

2.Ics=75% Icu(Except single pole MCCB);



Description


TRM2 series circuit breakers and auxiliaries comply with the following international standard:

IEC/EN 60947-1: Low-voltage switchgear and controlgear-Part 1: General rules

IEC/EN 60947-2: Low-voltage switchgear and controlgear-Part 2: Circuit breakers


TRM2 series FRAME.50 MCCB (Standard use environment)
1. Ambient temperature: Within the range of -5ºC--+55ºC(However, when the temperature exceed 40ºC,it should be considered to reduce the capacity to use);
2. Relative humidity: Within the range of 45%--85%;
3. Altitude: 2000m or less(However, if it exceeds 1000m, atmosphere correction through humidity test and withstand voltage test can be considered);
4. Atmosphere where excessive steam, oil steam, smoke, dust, salt and other corrosive materials do not exist;


Classification:
According to the poles:                                          2-poles, 3-poles




Technical

Model (AF) 50AF 100AF
Product type TRM2-50/2 TRM2-50/3 TRM2-100/2 TRM2-100/3
Number of poles 2 3 2 3
Rated current (A) In 5, 10 15, 20, 30, 40, 50 5, 10 15, 20, 30, 40, 50 63, 80, 100 63, 80, 100
Rated voltage(V) Ue 220/415 220/415 220/415 220/415
Rated Insulated voltage (V),50/60Hz Ui 500 500 500 500
Rated impulse voltage(kV) Uimp 6 6 6 6
Ultimate breaking capability(kA)
GB 14048.2, IEC/EN 60947-2
Icu 220V 415V 220V 415V 220V 415V 220V 415V 220V 415V
5 2.5 10 6 5 2.5 10 6 10 6
lcs=%×lcu 75% 75% 75% 75% 75% 75%
Dimensions (mm) a 50 75 50 75
b 98 98 98 98
c 60 60 60 60
d 80 80 80 80
Weight (kg) 0.31 0.41 0.31 0.41
