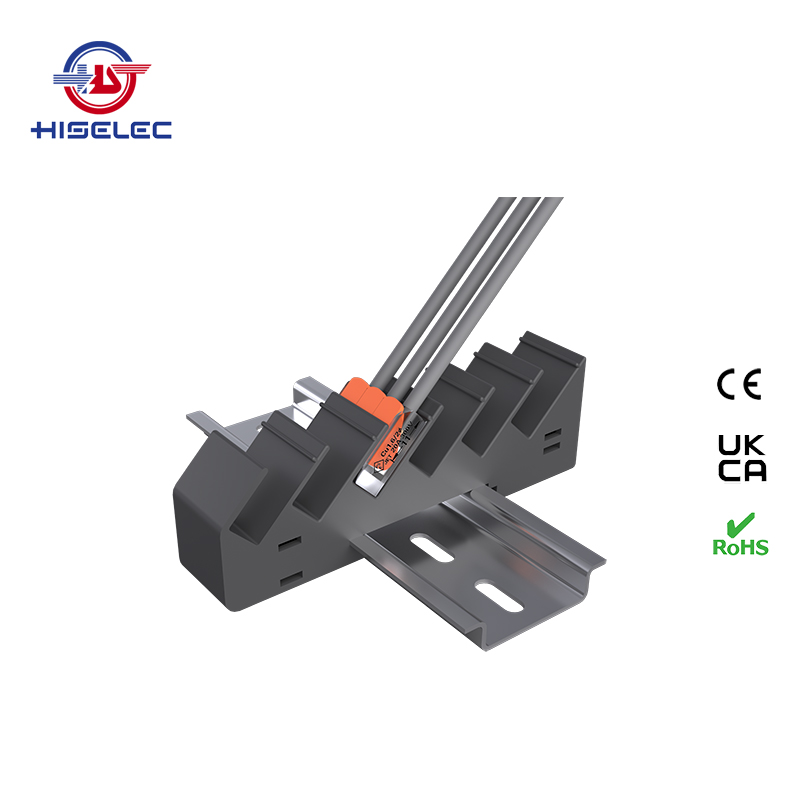

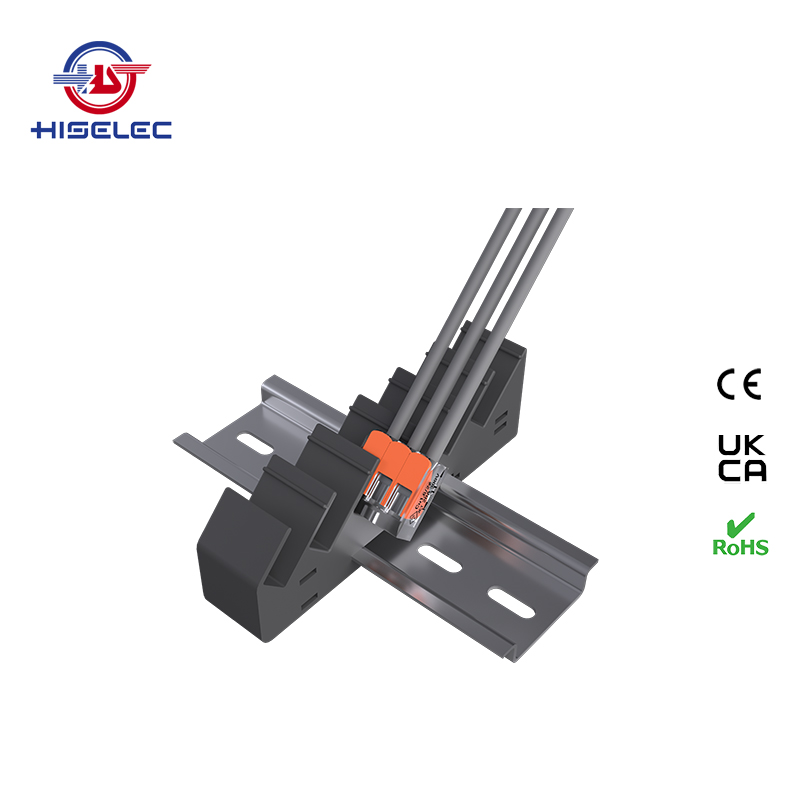

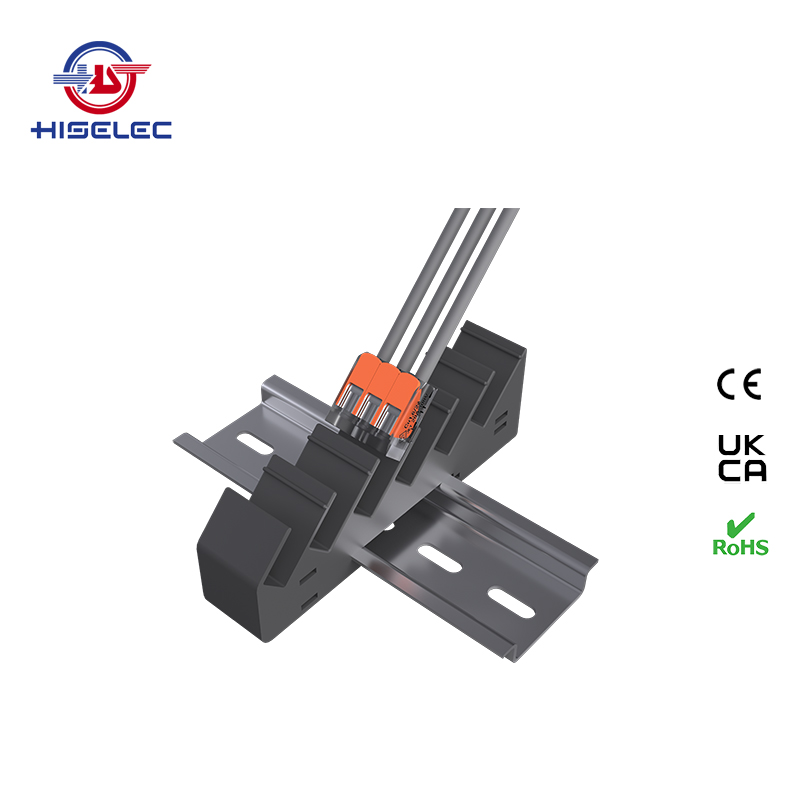

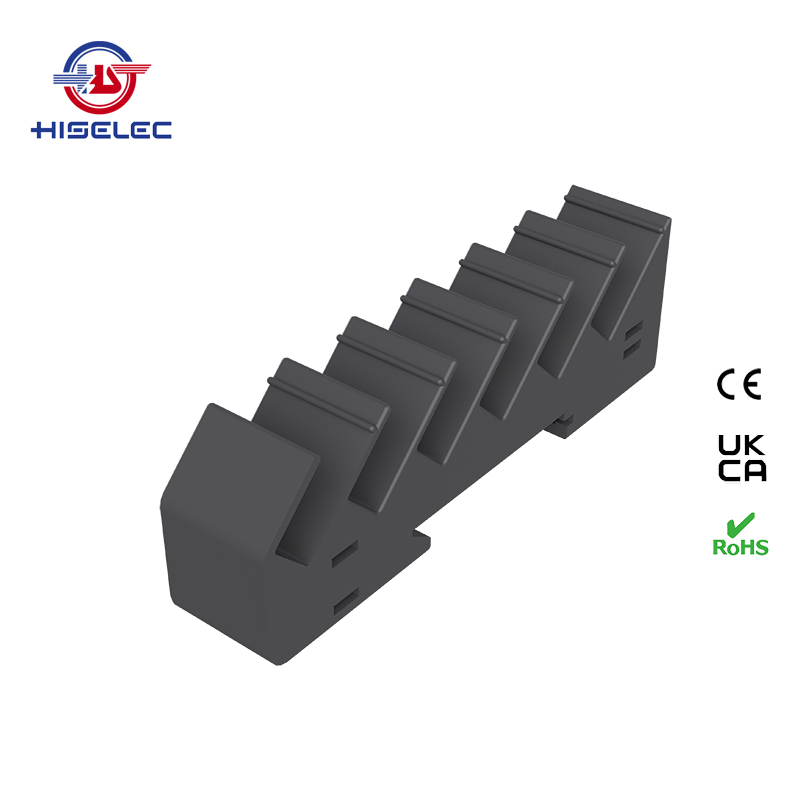

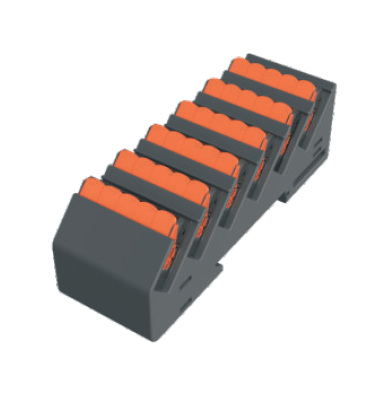

STH221-3接线端子底座，专用于WAGO接线端子配套使用
-
我要分享：
|
符合认证: CE, UKCA, RoHS;
|
|
使用范围: 支撑底座-专业用于WAGO款221系列接线端子; |
|
|
详情描述
General Use

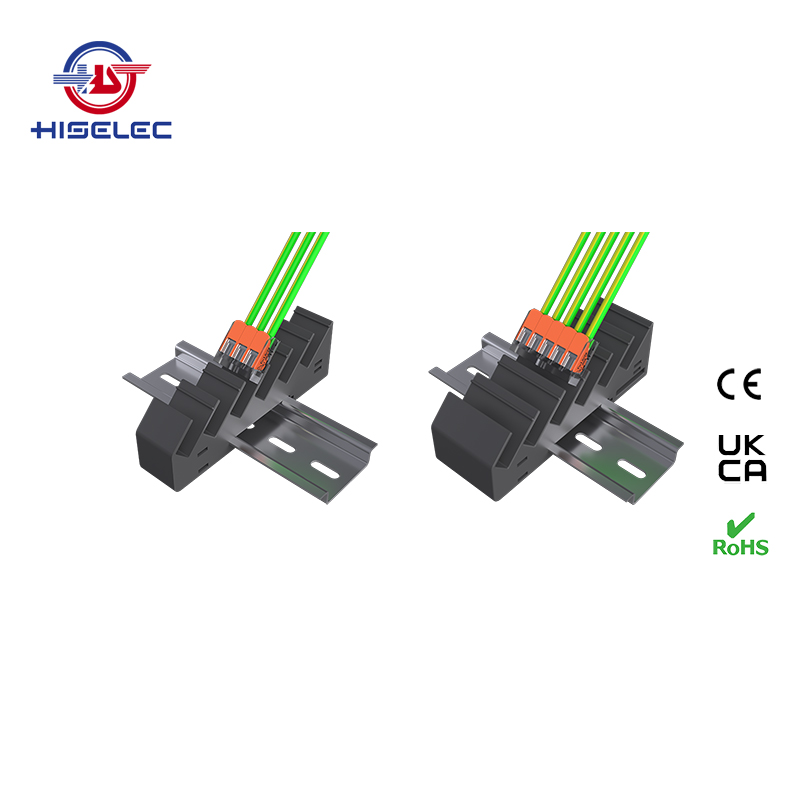

STH series terminal holder use for WAGO's design 221-2, 221-3 and 221-5 series terminal block.

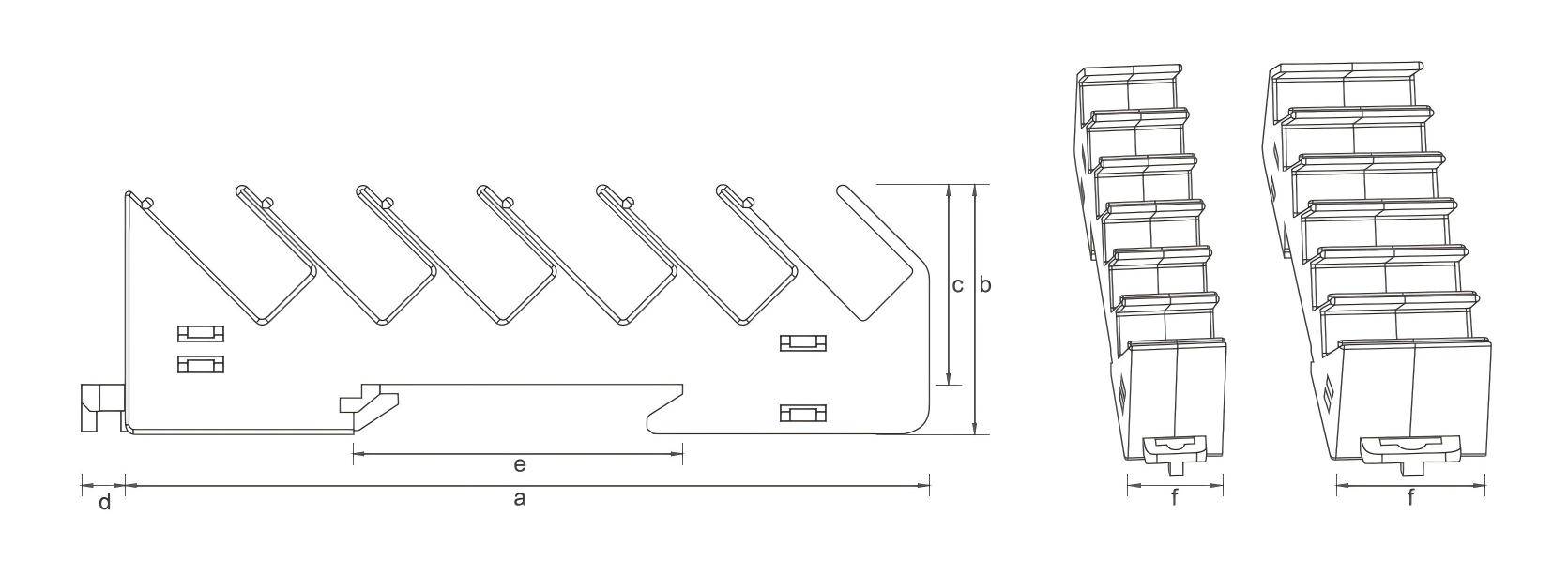

Physical data
Type
STH221-3
STH221-5
Product code
2024011001
2024011002
Maximum connection poles
Poles
18 (3*6)
30 (5*6)
Length (mm)
a
90.5
90.5
Height (mm)
b
28
28
Depth from upper-edge of DIN-rail (mm)
c
22.5
22.5
Extra clip part (mm)
d
8
8
Assemble size (mm)
e
36
36
Width (mm)
f
18
30
Certificate
CE, UKCA, RoHS
Mechanical data
Type
STH221-3
STH221-5
Mounting
35mm width din rail
Suitable
Use for WAGO's 221 Series Splicing 2-, 3- and 5- conductor (4 mm²)
Material data
|
Type |
STH221-3 |
STH221-5 |
|
Color |
Grey |
|
|
Insulation material (main housing) |
Flame Retardant Polyamide UL94 V0(PA) |
|
|
Weight (g) |
20 |
30.84 |
Package data
|
Type |
STH221-3 |
STH221-5 |
|
|
Inner box |
Quantity (pieces) |
40 |
24 |
|
|
Dimension (cm) |
23*10*9.5 |
23*10*9.5 |
|
Master carton |
Quantity (pieces) |
400 |
240 |
|
|
Dimension (cm) |
51*24*20 |
51*24*20 |
Product adavantage
|
Type |
STH221-3 |
STH221-5 |
|

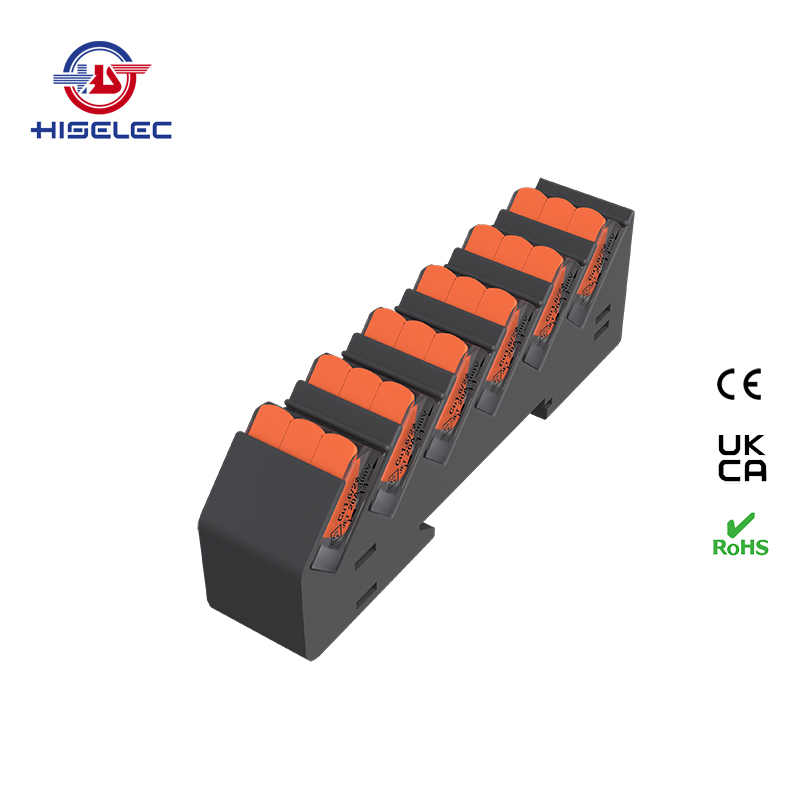

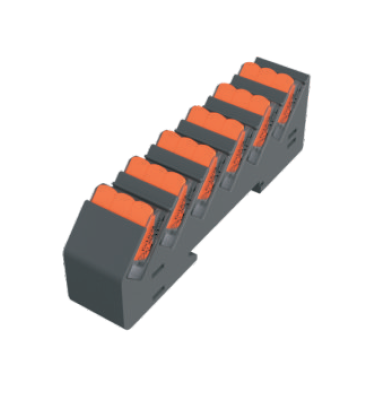

Total 6 rows of terminal blockposition. |
|
|
|
The protruding line can ensure that the terminal block will not fall off easily. |
|
|
|

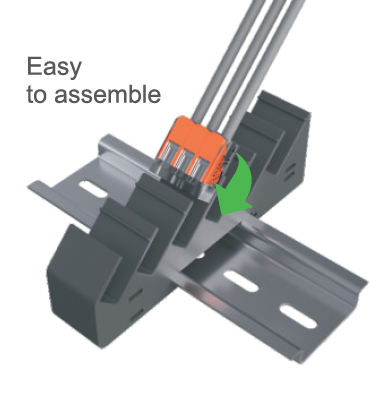

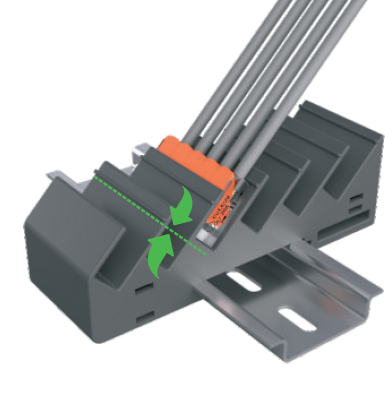

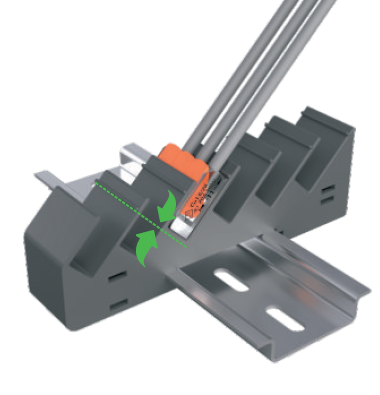

Easy to inserting connectors into the terminal holder. |
|
|
|

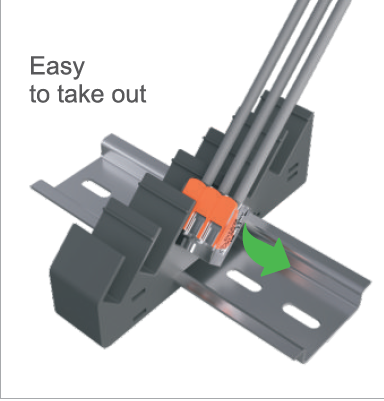

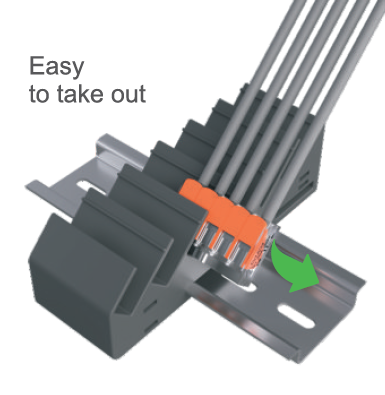

Easy to take out connectors from the terminal holder. |
|
|
|

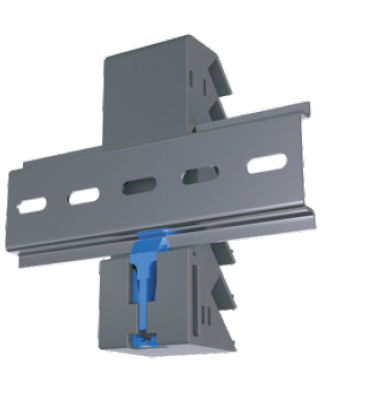

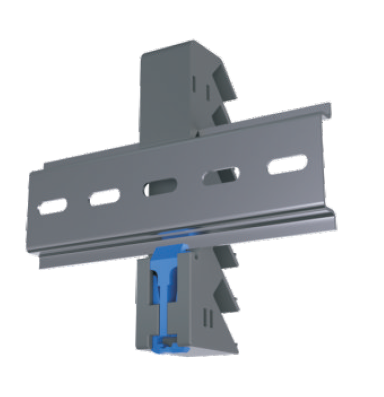

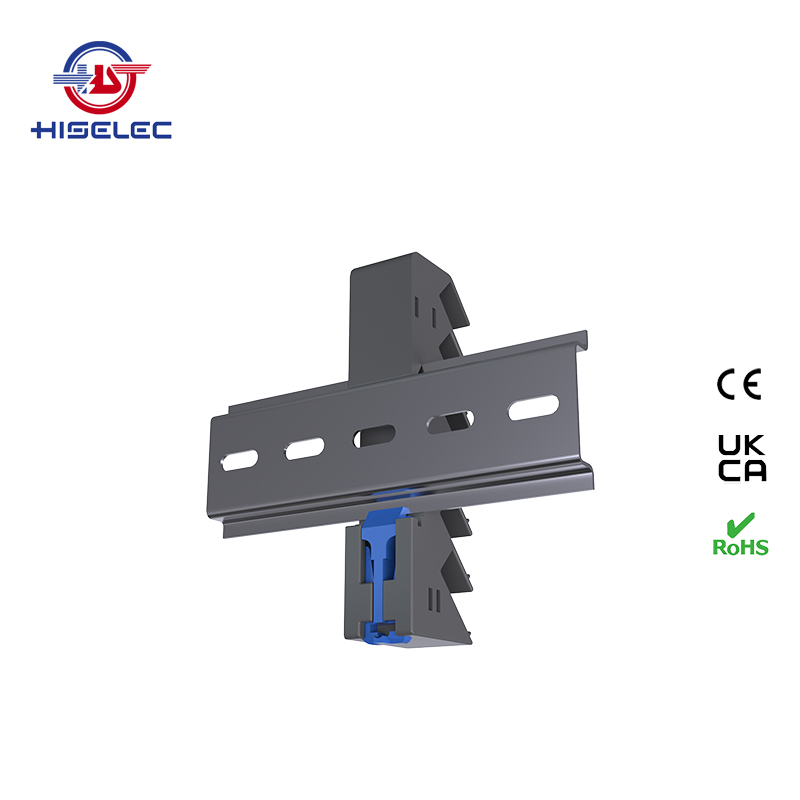

35mm width Din rail assemble. |
|
|
技术参数
Physical data
|
Type |
STH221-3 |
STH221-5 |
|
|
Product code |
2024011001 |
2024011002 |
|
|
Maximum connection poles |
Poles |
18 (3*6) |
30 (5*6) |
|
Length (mm) |
a |
90.5 |
90.5 |
|
Height (mm) |
b |
28 |
28 |
|
Depth from upper-edge of DIN-rail (mm) |
c |
22.5 |
22.5 |
|
Extra clip part (mm) |
d |
8 |
8 |
|
Assemble size (mm) |
e |
36 |
36 |
|
Width (mm) |
f |
18 |
30 |
